Alert system

An alert is the reaction of Pandora FMS to an incorrect value of a Module. Said reaction is configurable and can consist of anything that can be triggered by a script configured in the Operating System where Pandora FMS server that processes the Module runs.

In Pandora FMS, alerts work by defining some trigger conditions, some actions chosen for that alert, and finally the execution of some commands in Pandora FMS server, which will be in charge of carrying out the configured actions.

There are several types of alerts:

• Simple alerts.
• Alerts about events.
• Alerts about traps SNMP.

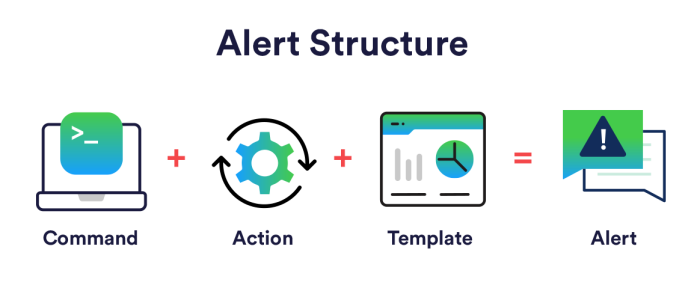

• Commands: Specify what will be done; It will be the execution that Pandora FMS server will carry out when triggering the alert.
• Actions: Specify how it will be done; they are the customizations of the command arguments.
• Templates: Specify when it will be done; define the conditions for triggering the action(s).

Templates and actions have a series of generic fields called Field1 , Field2 , Field3, (…) , Fieldn which are used to transfer the information from the template to the action and from the action to the command, to finally be used as parameters in the execution of said command.

Said information is transferred whenever the next step does not already bring information defined in its Fieldn fields. That is, in case of overlapping fields or parameters, it overwrites the action to the template (for example, if the template has Field1 defined and the action as well, the Field1 of the action overwrites the template action).

Menu Management → Alerts → Commands.

The actions that Pandora FMS will carry out in the event of alert situations will ultimately be translated into executions on the server, in the form of commands.

Menu Management → Alerts → Commands → Create.

• Command: Command that will be executed when triggering the alert. It is possible to use macros to replace the parameters configured in the alert declaration.
• Group: This determines which group of alerts you may associate the command with. You may only assign a group the user creating the alert command belongs to, unless that user explicitly belongs to group ALL.
• Field description and Field values:
  • Available Field Values: A collection of possible values for that field. If this field is set (not empty), the field will be a combo select instead of a text box. The combo needs for each possible value a label (the visible option) and a value (the sent option). The syntax is as follows: value1,label1;value2,label2;value3,label3;valueN,labelN.
  • Hide: If the field contains any passwords, this option hides the contents with asterisks.
• It is possible to display an HTML editor in a command field when creating or editing an alert action if that command field has the special token value _html_editor_ .

• eMail: It sends an email from Pandora FMS server. Email messages are sent in HTML format. It must be taken into account that the receiver must be able to access the resources used in the template, such as images.
• Internal audit: It generates an entry in the internal audit system of Pandora FMS. This is stored in Pandora FMS database and can be reviewed with the event viewer from the console.
• Monitoring Event: Create a custom event in the Pandora FMS event console.
• Pandora FMS Alertlog: It is a predefined alert that writes the alerts in plain ASCII format in file /var/log/pandora/pandora_alert.log.
• SNMP Trap: It sends an SNMP trap parameterized with the arguments used.
• Syslog: It sends an alert to the syslog using the logger system command.
• Sound Alert: It plays a sound in the sound console of events when an alert takes place.
• Jabber Alert: Send a Jabber alert to a chat room on a predefined server (the .sendxmpprc file must be configured first). Type in field1 the username, field2 the name of the chat room, and field3 the text message.
• SMS Text: It sends an SMS to a specific mobile phone. First it is necessary to define an alert and configure a gateway for sending SMS that is accessible from Pandora FMS server.
• Validate Event: It validates all events related to a module. The name of the agent and the name of the module will be passed.
• Remote agent control: Send commands to agents with UDP server enabled. The UDP server is used to order agents (Windows and UNIX) to refresh the execution of the agent: that is, to force the agent to run and send data.
• Generate Notification: It allows you to send an internal notification to any user or group.
• Send report by e-mail and Send report by e-mail (from template): Both options allow you to send a report in different formats (XML, PDF, JSON, CSV) by email. The second option allows you to use a template for that attached report.

Management menu → Alerts → Commands → click on the name of the command to be edited. Once the chosen alert has been modified, click Update.

Actions are the alert components in which a command is related to the generic variables Field 1, Field 2, … , Field 10.

Actions allow you to define how to launch the command.

Menu Management → Alerts → Actions → Create.

• Group: The group of the action. You may only assign a group to which the user creating the alert command belongs, unless that user explicitly belongs to the group ALL. If the associated command has a group other than All, only the group associated with the command or the All group can be set as the action's group. If for some reason this defers, you will see a warning message for prompt correction by a user with the necessary rights.
• Command: Command that will be used in the event that the alert is executed. You may choose between different predefined commands in Pandora FMS.
• Threshold: An alert action is executed only once within this time interval, regardless of how many times the alert is triggered.
• Command Preview: In this field, not editable, the command to be executed in the system will automatically appear.
• Field 1 ~ Field 10: If necessary, these fields define the value of the macros, from _field1_ to _field10_, to be used in the command. These fields can be a text field or a select combo if configured.

Menu Management → Alerts → Actions → click on the name of the action to modify.

Menu Management → Alerts → Actions → click on the corresponding trash can icon (Delete column).

Management → Alerts → Templates menu.

Templates define the conditions for triggering the alert (when to run the action). They are associated to Modules, so that when the conditions of the template are met, the associated action(s) will be executed.

Its design allows to generate a reduced group of generic templates that may be used for most possible cases in Pandora FMS. The templates created by default are:

1. Critical condition: Configured with critical severity, a condition type in critical state, it has as default action that of sending an e-mail message to the administrator and with alert recovery enabled.
2. Manual alert: This is a template used to trigger manual alerts, the condition defined here will never be executed. This template is used to map to actions and commands used to do remote management (restarting the Agent, executing commands on the server, etc.).
3. Critical condition: Configured with warning severity, a condition type in warning status, it has as default action that of sending an email message to an administrator and with alert recovery enabled.
4. Unknown condition: Configured with warning severity, a condition type in unknown_status, it has as default action that of sending email message to administrator and with alert recovery enabled.

Management → Alerts → Templates → Create.

Then follow the three guided steps.

• Group: The group the template will be applied to. You may only assign a group to which the user who creates the template belongs, unless said user explicitly belongs to the group ALL.
• Priority: Informative field about the alert. The event generated when the alert is triggered will inherit this priority, useful for filtering alert searches.

• Use special days list: It sets the special days calendar to be used in the template.
• Time Threshold: Time that must elapse to reset the alert counter. It defines the time interval in which an alert is guaranteed not to fire more times than the number set in Max. number of alerts. After the defined interval, the counter will be restarted. The shot counter reset will not be reset if the alert recovers upon reaching a correct value, unless the value Reset counter for non-sustained alerts is enabled, in which case the counter will be reset immediately after receiving a correct value.
• Min number of alerts: Minimum number of times that the situation defined in the template must take place (always counting from the number defined in the FlipFlop parameter of the Module) to start triggering an alert. The default value is 0, which means that the alert will be triggered when the first value that meets the condition is reached. It works like a filter, useful for ignoring false positives.
• Max number of alerts: Maximum number of alerts that can be sent consecutively in the same time interval (Time Threshold). It is the maximum value of the alert counter. No more alerts will arrive per time interval than those indicated in this field.
• Default Action: This list defines the default action that the template will have. This is the action that will be automatically created when you assign the template to the module. Add one action or none, however you cannot add multiple actions by default.
• Schedule: It establishes the days on which the alert can be triggered. It is possible to see and configure when the alert will be active each day of the week thanks to the built-in editor that is displayed by default in simple mode. In addition, by accessing the detailed mode you may configure the schedules with higher precision.
• Reset counter for non-sustained alerts: Its activation depends on whether the number indicated in Min. number of alerts is higher than 0. Enabling this token resets the alert counter when the indicated condition does not take place consecutively. For example, if the field Min. number of alerts has a value of 2, it means that the module has to go through the state assigned in Condition type 3 times to trigger the alert. There are two scenarios with the latter token:
• If the reset token is checked, the number of critical states will need to be consecutive, otherwise the counter will be reset.

• If the reset token is not checked, the alert will be triggered after an alternate or continuous sequence of critical states:

• Disable event: By checking this token, the event generated in the alert trigger event view will not be created.

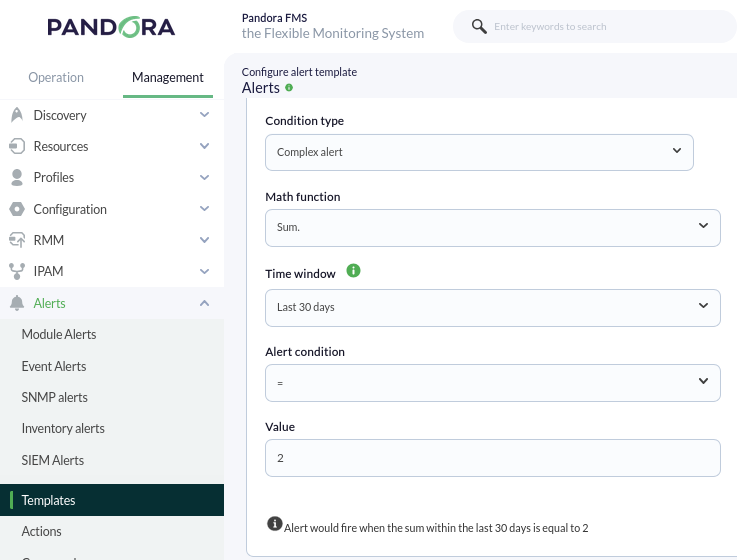

• Condition type: It allows you to specify the element that will trigger the alert, e.g. a critical state (Critical state option) or just different from the normal state (Not normal state option). You may also define complex alerts (Complex alert option), for example if the sum is exactly equal to two over the last thirty days:

• Alert recovery: Combo where you may define whether or not to enable alert recovery. In the event that alert recovery is enabled, when the module no longer meets the conditions indicated by the template, the action associated with the arguments specified by the field fields defined in this column will be executed.
• In all instances of the fields field1 … field10 (both in the alert template, as well as in the command and in the action) those defined in the macro_list.

Once the configuration is complete, finish by clicking Finish.

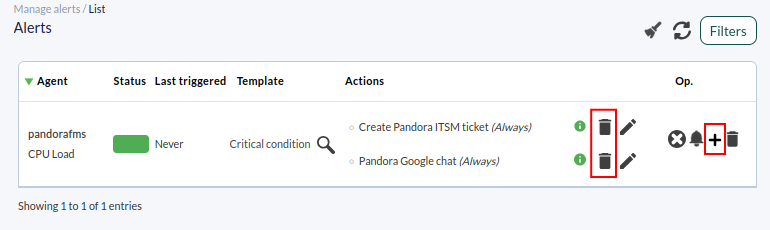

Management menu → Alerts → List of alerts → click on the pencil icon Builder alert.

• Agent: Autocomplete to choose the Agent.
• Module: List of modules of the previously selected Agent.
• Actions: Action that will be executed when the alert is triggered. If the template already has a default action, it can be left at Default.
• Template: Template that will contain the trigger conditions of the alert.
• Threshold: An alert action will not be executed more than once every action_threshold seconds, regardless of the number of times the alert is fired.

Once an alert has been created, it will only be possible to modify the actions added to the action that has the template.

It is also possible to delete the action that was selected when the alert was created by clicking the gray trash can icon to the right of the action, or add new actions by clicking the + button.

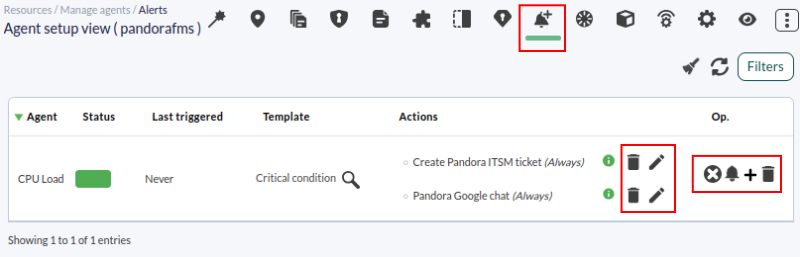

From the agent administration section you may add new alerts by navigating to the corresponding tab:

There you may:

• Edit or delete each and every one of the actions of each alert assigned to the agent (column Actions).
• From the options column (Op.):
  • You may disable or enable.
  • You maat set the alert in standby mode.
  • You may add an action.
  • You may clear the alert completely.
  • You may see the alert in detail.

• Define critical and warning thresholds in module.
• Associate the alert to the module, to do so, go to the alerts tab within the Agent where the Module is.

If necessary, you may create a new action and/or new template, by clicking on those buttons you will be redirected to the corresponding sections. Once the new components have been created, return to the previous step.

• With the Add alert button, the new alert is saved.
• Alert escalation: An alert escalation is additional actions that are executed if the alert is repeated a certain number of times consecutively.
  • It is only necessary to add the additional actions and determine between which consecutive repetitions (Number of matching alerts) of the alert this action will be executed.
  • When an alert recovers, all actions that were executed up to that point will be executed again, not just those that correspond to the current Number of alerts match from setting.
  • Additionally, a Threshold can be placed as a second parameter, for which an alert cannot be launched more than once during said interval.
• Finally you may configure alert message forwarding through instant messaging like Telegram, for example.

Alerts can be on, off, or in standby mode (standby). The difference between alerts that are disabled and alerts on standby is that alerts that are disabled simply will not work and therefore will not show up in the alerts view. Instead, alerts on standby will show up in the alert view and will work but only at display level. That is, it will show whether or not they are triggered but they will not carry out the actions that they have programmed nor will they generate events.

Alerts on standby are useful to be able to see them without disturbing other aspects.

Cascading protection is a feature of Pandora FMS that allows avoiding a massive alert bombardment when a group of Agents is not accessible, due to a failed main connection.

This happens, for example, when an intermediate network element such as a router or a switch fail, leaving a large part of the network managed with Pandora FMS inaccessible. Because the network checks would fail in this scenario, alerts would start triggering for down devices without being true.

For the agent to work with cascading protection enabled, the parent Agent (Advanced options, token Parent) must be correctly configured, on which it depends.

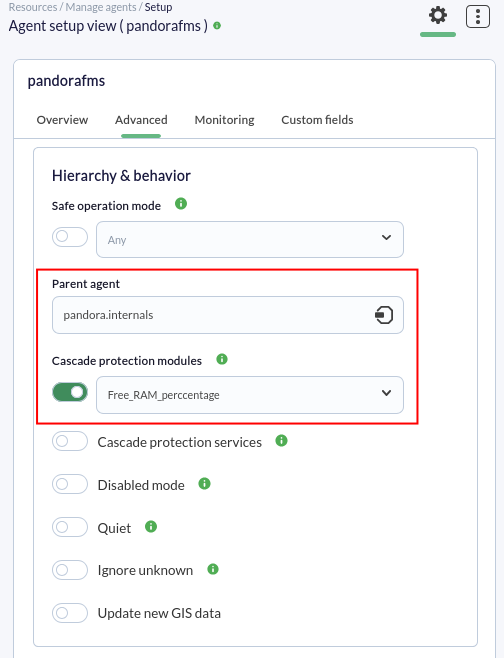

Cascade protection is activated from the Agent configuration, Advanced options section, click on the Cascade protection modules and/or Cascade protection services option.

It is possible to use the Services to avoid alerts from multiple sources reporting the same incident.

If Service-based cascading protection is activated, Service elements (Agents, Modules or other Services) will not report problems, but the Service itself will alert on behalf of the affected element.

In order to receive this information, edit or create a new alert template, using the _rca_ macro for a root cause analysis.

You may use the status of a Parent Agent Module to prevent them from sending Agent alerts in case it goes critical.

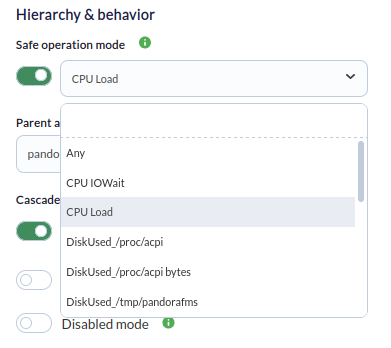

Safe operation mode can be enabled in the advanced configuration options of an Agent.

If the status of the selected Module goes into critical, the rest of the Agent Modules are disabled until it returns to normal or warning again. This allows, for example, to disable Remote Modules if connectivity is lost.

These specific macros can be added by expanding the macros section of any module.

• They are defined in the Module.
• Store the data in the database.
• They can have any name, for example _myMacro.
• They are not reflected in the local configuration (.conf).
• Used exclusively for alerts.
• They cannot be defined at the component level.
• They can be defined in monitoring policies.
• Set values can be used as part of the fields in the alert definition.

Pandora FMS by itself has the ability to send emails as explained in general Console settings.

However, its flexibility allows sending an email with different mail platforms.

In order for Pandora FMS server to be able to send alerts through Google Mail® (Gmail®), proceed to general Console settings or to Pandora FMS server configuration and enter your credentials (web domain, usernames, password, etc.).

Action Settings

• An action is added, for example with the name Mail to Admin.
• To configure the mail recipient, use the eMail command, adding the recipients in Destination address Field 1 separated by commas.

Alert Settings

In Module configuration, Alerts tab, a new alert is created with the action created.

• You must have an account created in Office365.
• Proceed to the general Console settings or to Pandora FMS server configuration and enter your credentials (Office365 web domain, usernames, password, etc.).

Management → Alerts → Event Alerts menu.

Alerts can be built based on the events received. These alerts can be simple or complex, based on a set of rules with logical relationships.

This type of alerts allows working from a much more flexible perspective, since alerts are not generated based on the status of a specific Module, but on an event that may have been generated by several different Modules and even by different Agents.

Each event alert is configured to trigger on a certain type of event; when the logical equation defined by the rules and their operators is met, the alert will be triggered.

Management → Alerts → Event Alerts menu.

With the Create button a new event alert is added and the process is similar to the creation of a alert template. There are five steps for the complete creation of an event alert, some important aspects are:

• Paso 1, Configure: It contains the basic data such as name, group of agents to which the event alert will belong and its severity.
• Paso 2, Conditions: Step where a alert template, a list of special days, the Disable event option (the event generated in the alert trigger event view will not be created if this token is checked) and a rule evaluation mode will be assigned:

When there are two or more event alerts, they are evaluated one by one following the chronological order of creation and, if needed, establishing a hierarchy.

Each event alert has two specific configuration parameters for this purpose:

• Rule evaluation mode:It can be Pass or Drop. The former means that, in case an event meets the rules of an alert, the rest of the alerts are still evaluated below. This is the default behavior. Drop, otherwise, means that when an event meets an alert, stop evaluating the rest of the alerts.
• Grouped by: Allows grouping the rules by Agent, Group, Module or Module Alert. Thus, if a rule is configured to be triggered when two critical events are received and grouped by Agent, two critical events should arrive from the same Agent.

• Step 3, Rules: Rules within an event alert.
• Step 4, Fields: Fields within an event alert
• Step 5, Triggering: Triggered within an event alert.

When finishing the creation and returning to the global view you will have the list of registered event alerts and information about them, as well as options about them (operate with the action disabled, in standby mode, add more actions, edit or delete the corresponding event alert). It will also be possible to change the order of the different event alerts between them.

Event alerts are based on filtering rules using the following logical operators:

• and
• nand
• or
• nor
• xor
• nxor

These logical operators are used to search for events and/or expressions that match the configured filtering rules and if matches are found, the alert will be triggered. To define the alert rules it will be necessary to drag the elements on the left side to the drop area on the right side to build its rule.

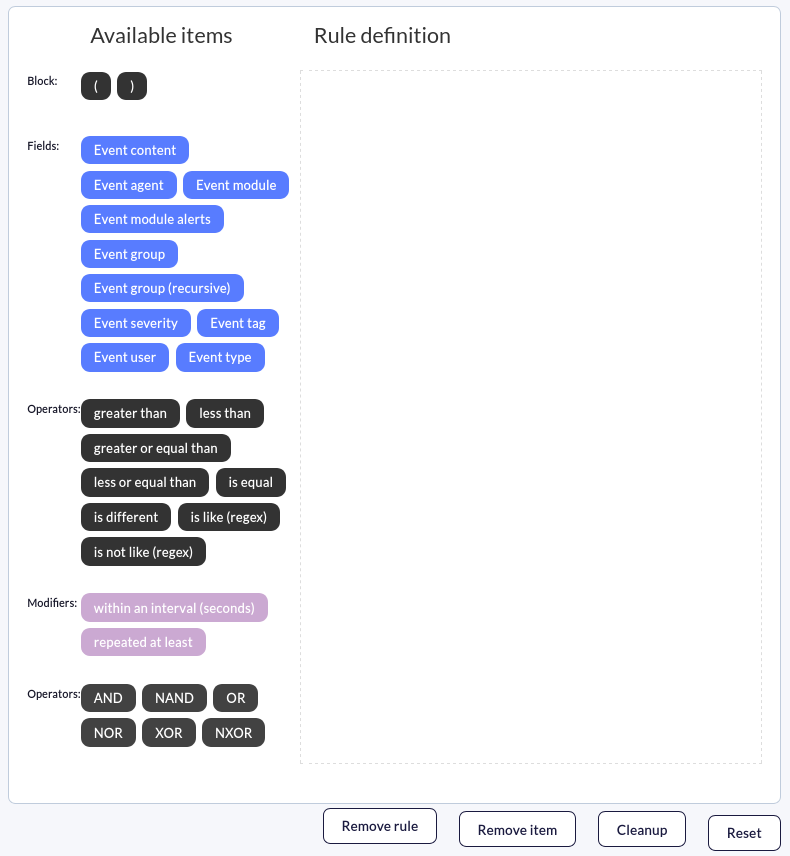

Available configuration items:

These elements will be enabled to guide the user in complying with the grammar of the rule. The following is a simplified explanation of the grammar to be used:

Where S is the set of rules defined for the event alert.

Two buttons are available for clearing and undoing all changes: Cleanup and Reset.

It forces the analyzed element (event) to comply simultaneously with A and B.

It forces both rules (A) and (B) to be satisfied in the evaluation window. This means that there must be entries satisfying both rules in the last seconds (defined by the event_window parameter).

Field2 , Field3, (…) , Fieldn must be configured, which are used to transfer the information from template to action and from action to command, to finally be used as parameters in the execution of that command.

This information is transferred as long as the next step does not already have information defined in its Fieldn fields. That is, in case of overlapping fields or parameters, it overwrites the action to the template (for example, if the template has Field1 defined and the action also, the Field1 of the action overwrites the action of the template).

In this section you must configure the actions to be performed when the alert is triggered and indicate at what intervals and how often this action will be executed.

• Actions: Action that needs to be executed.
• Threshold: Time interval that has to elapse for the action to be executed again after the alarm has been triggered.

Once the above parameters have been selected, press the Add button and then you can select and view the list of configured actions (section Select the desired action and mode to view the Triggering fields for this action).

The macros that can be used within the configuration of an event alert are in the list of macros.

Management → Alerts → Log Alerts menu.

Alerts can be built based on the received logs. These alerts can be simple or complex, based on a set of rules with logical relationships.

This type of alerts allows working from a much more flexible perspective, since alerts are not generated based on the status of a specific Module, but on a log that may have been generated by several different Modules and even from different Agents.

Each log alert is configured to trigger on a certain type of event; when the logical equation defined by the rules and their operators is met, the alert will be triggered.

Management → Alerts → Log Alerts menu.

With the Create button a new log alert is added and the process is similar to the creation of a alert template. There are five steps for the complete creation of a log alert, some important aspects are:

• Step 1, Configure: It contains the basic data such as the group of agents to which the log alert will belong, name of the alert and its severity.
• Step 2, Conditions: Step where a alert template, some list of special days, the Disable event option (the event generated in the alert trigger event view will not be created if this token is checked) and a rule evaluation mode will be assigned:

When there are two or more log alerts, they are evaluated one by one following the chronological order of creation and, if necessary, establishing a hierarchy.

Each log alert has two specific configuration parameters for this purpose:

• Rule evaluation mode: Choosing Pass means that, in case a log meets the rules of an alert, all other log alerts are still evaluated below. This is the default behavior. In the case of choosing Drop, when a log meets an alert all other log alerts will no longer be evaluated.
• Grouped by: Allows grouping the rules by Agent, Group, Module or Module Alert. Thus, if a rule is configured to be triggered when two critical events are received and grouped by Agent, two critical events should arrive from the same Agent.

• Step 3, Rules: Rules within a log alert.
• Step 4, Fields: Fields within a log alert
• Step 5, Triggering: Triggered within a log alert.

When you finish the creation and return to the global view you will have the list of registered log alerts and information about them, as well as options about them (operate with the action disabled, in standby mode, add more actions, edit or delete the corresponding log alert). It is also possible to change the order of the different log alerts.

Event alerts are based on filtering rules using the following logical operators:

• and
• nand
• or
• nor
• xor
• nxor

These logical operators are used to search for logs and/or expressions that match the configured filtering rules and if matches are found the alert will be triggered.

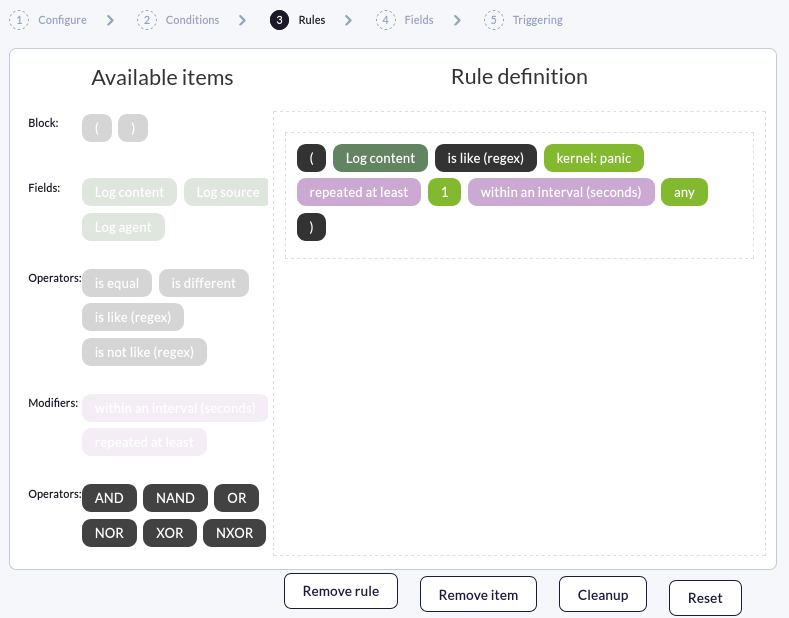

To define the rules of the alert, it will be necessary to drag the elements on the left side to the drop area on the right side to build your rule.

Available configuration items:

These elements will be enabled to guide the user in complying with the grammar of the rule. The following is a simplified explanation of the grammar to be used:

Where S is the set of rules defined for the log alert.

Two buttons are available for cleaning and undoing all changes: Cleanup and Reset.

It forces the analyzed element (log) to fulfill simultaneously A and B.

It forces both rules (A) and (B) to be satisfied in the evaluation window. This means that there must be entries satisfying both rules in the last seconds (defined by the log_window parameter).

Field2 , Field3, (…) , Fieldn must be configured, which are used to transfer the information from template to action and from action to command, to finally be used as parameters in the execution of that command.

This information is transferred as long as the next step does not already have information defined in its Fieldn fields. That is, in case of overlapping fields or parameters, it overwrites the action to the template (for example, if the template has Field1 defined and the action also, the Field1 of the action overwrites the action of the template).

In this section you must configure the actions to be performed when the log alert is triggered and indicate at what intervals and how often this action will be executed.

• Actions: Action that needs to be executed.
• Threshold: Time interval that has to elapse for the action to be executed again after the log alarm has been triggered.

Once you have selected the above parameters, press the Add button and then you can choose and view the list of configured actions (section Select the desired action and mode to view the Triggering fields for this action).

The macros that can be used within the configuration of an event alert are in the list of macros.

These alerts are evaluated by the SIEM event server at the time of their generation, so for their correct operation, the SIEM monitoring must be enabled and configured.

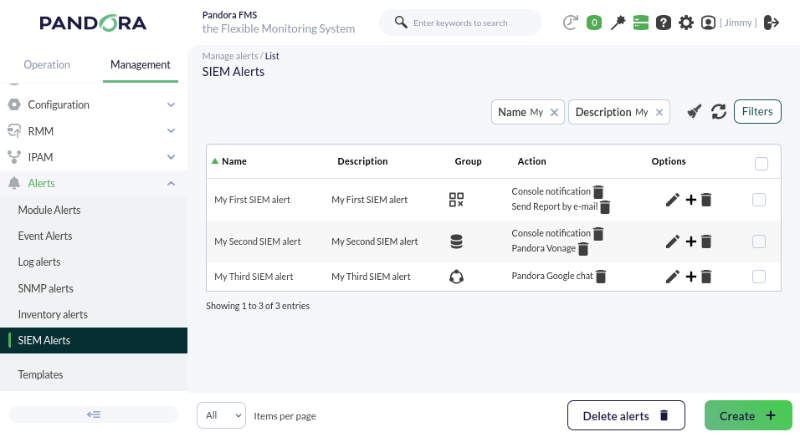

Management → Alerts → SIEM Alerts menu.

In this section it is possible to create, edit and delete SIEM alerts. The LW permission is required to access this section.

These alerts are based on the filter system of the SIEM event views, so that any event that was displayed with the configured filter conditions will trigger the alert.

For example, if a SIEM alert is configured with a critical event filter, just before the SIEM event server generates one with that condition the alert will be triggered.

SIEM alerts, like all other alerts, have global configuration options for their triggering.

Operation → SIEM → Alerts menu.

In this section it is possible to view, enable/disable and change the standby mode of the SIEM alerts available in the environment. The LM permission is required to access this section.

Command Macros, Action Macros and Event Alert Macros are common to each other but with the following exceptions: _modulelaststatuschange_, _modulelaststatustime_, _rca_ and _secondarygroups_.

_address_

Address of the Agent that triggered the alert.

_addressn_n_

The address of the Agent that corresponds to the position indicated in n. For example: addressn_1_ , addressn_2_

_agent_

Alias of the Agent that triggered the alert. If no alias is assigned, the Agent name is used.

_agentalias_

Alias of the Agent that triggered the alert.

_agentcustomfield_n_

Custom field number n of the Agent (eg _agentcustomfield_9_ ).

_agentcustomid_

Agent custom identifier.

_agentdescription_

Description of the Agent that triggered the alert.

_agentgroup_

Agent group name.

_agentname_

Name of the Agent that triggered the alert.

_agentos_

Agent operating system.

_agentstatus_

Current agent state.

_alert_critical_instructions_

Instructions contained in the Module for a critical state.

_alert_description_

Alert description.

_alert_name_

Alert name.

_alert_priority_

Numeric priority of the alert.

_alert_text_severity_

Alert text priority (Maintenance, Informational, Normal, Minor, Warning, Major, Critical).

_alert_threshold_

Alert threshold.

_alert_times_fired_

Number of times the alert was fired.

_alert_unknown_instructions_

Instructions contained in the Module for an unknown state.

_alert_warning_instructions_

Instructions contained in the Module for a warning state.

_all_address_

All the addresses of the Agent that triggered the alert.

_critical_threshold_min_

Minimum critical threshold.

_critical_threshold_max_

Maximum critical threshold.

_data_

Data that caused the alert to be triggered.

_dataunit_

It displays the unit type specified in the Unit field (located in the Advanced options section of an agent's module).

_email_tag_

Email mailboxes associated to Module tags.

_event_cf_text_

(Only event alerts). It gets all the information from custom data in text mode (with line breaks).

_event_cf_json_

(Only event alerts). It gets the information from custom data in JSON format.

_event_cfX_

(Only event alerts). Key of the custom field of the event that triggered the alert. For example, if there is a custom field whose key is IPAM, its value may be obtained using the _event_cfIPAM_ macro.

_event_description_

(Only event alerts). Textual description of Pandora FMS event.

_event_extra_id_

(Event alerts only). Extra identifier.

_event_id_

(Event alerts only). Identifier of the event that triggered the alert.

_event_text_severity_

(Event alerts only). Priority in text of the event that triggers the alert (Maintenance, Informational, Normal Minor, Warning, Major, Critical).

_eventTimestamp_

Timestamp in which the event was created.

_fieldX_

User-defined X field.

_group_contact_

Group contact information. It is configured when creating the group.

_groupcustomid_

Custom group identifier.

_groupother_

Other information about the group. It is configured when creating the group.

_homeurl_

It is a public URL link that must be configured in the general configuration options.

_id_agent_

Agent identifier, useful to build access URL to Pandora FMS console.

_id_alert_

Alert identifier, useful for correlating the alert in third-party tools.

_id_group_

Agent group identifier.

_id_module_

Module identifier.

_interval_

Module execution interval.

_module_

Module name.

_modulecustomid_

Module custom identifier.

_moduledata_X_

Using this macro (“X” is the name of the Module in question) you collect the last data from this Module and if it is numeric, it returns it formatted with the decimals specified in the console configuration and with its unit (if it has one). It would be useful, for example, when sending an email when a Module alert is skipped, to also send additional (and perhaps very relevant) information from other modules coming from the same Agent.

_moduledescription_

Module description.

_modulegraph_nh_

(Only for alerts using the eMail command). It returns a base64-encoded image of a module graph with a period of n hours (e.g. _modulegraph_24h_). It requires the proper configuration of the connection from the server to the console through API, which is done in the server configuration file.

_modulegraphth_nh_

(Only for alerts that use the _email_tag_ command). The same operation as the previous macro but only with the critical and warning thresholds of the Module, if they are defined.

_modulegroup_

Module group name.

_modulestatus_

Module status.

_modulelaststatuschange_

(For Command Macros only) timestamp at which the module's last state change took place.

_modulelaststatustime_

(For command macros only) date and time when the last Module status change took place.

_lastdatatimestamp_

Last check date and time received by a module (useful for pass to unknown alerts).

_lastdatatime_

Last check date and time received (in Unix time format) by a module (useful for pass to unknown alerts).

_moduletags_

URLs associated with the module tags.

_name_tag_

Name of the tags associated to the Module.

_phone_tag_

Phones associated to the module tags.

_plugin_parameters_

Module plugin parameters.

_policy_

Name of the policy the module belongs to (if applicable).

_prevdata_

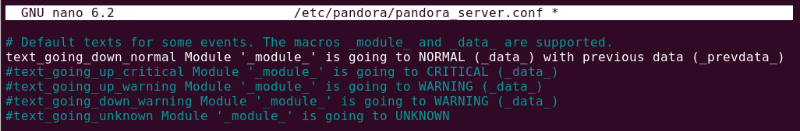

Previous data before the alert was triggered. It is necessary to uncomment the following section in Pandora FMS server configuration file:

# Default texts for some events. The macros _module_ and _data_ are supported.
text_going_down_normal Module '_module_' is going to NORMAL (_data_) with previous data (_prevdata_)
#text_going_up_critical Module '_module_' is going to CRITICAL (_data_)
#text_going_up_warning Module '_module_' is going to WARNING (_data_)
#text_going_down_warning Module '_module_' is going to WARNING (_data_)
#text_going_unknown Module '_module_' is going to UNKNOWN

The server process must be restarted for the new changes to be applied.

_rca_

Root cause analysis chain (for Services only).

_secondarygroups_

It shows the Agent child groups (only for command macros and action macros).

_server_ip_

IP address of the server to which the Agent is assigned.

_server_name_

Name of the server to which the Agent is assigned.

_target_ip_

IP address of the Module target.

_target_port_

Module target port.

_timestamp_

Time and date the alert was triggered.

_time_down_human_

Time in long format, for example: “1day 10h 35m 40s” (this macro only works for recovery alerts).

_time_down_seconds_

Time in seconds (this macro only works for recovery alerts).

_timezone_

The time zone represented by _timestamp_.

_warning_threshold_max_

Maximum warning threshold.

_warning_threshold_min_

Minimum warning threshold.

Back to Pandora FMS Documentation Index
