Distributed monitoring with Satellite server

Introduction

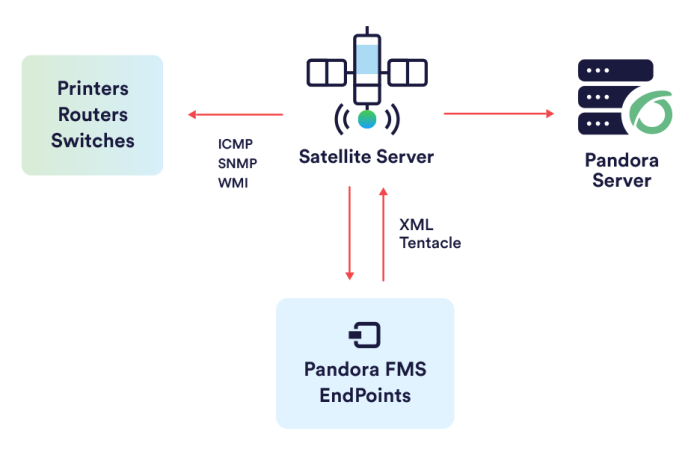

The Satellite Server is used to discover and monitor remote networks and equipment, either network elements (routers, switches, etc.) through SNMP or ICMP, or MS Windows® (via WMI) or GNU/Linux® (via SNMP) servers. It is particularly useful to monitor remote networks that are not accessible from Pandora FMS server, and where Software Agents cannot be installed either.

The Satellite Server has some features that make it special:

  • It can run network tests (ICMP, Latency and SNMP v1 and v2) at an extremely high rate (500 checks per second). For SNMP v3, configure login credentials and due to data encryption, it will do a slower check.
  • It only sends data to the server every N seconds (by default 300), but it can run the latency, ICMP and SNMP tests with a shorter interval so that, when it detects status changes, it immediately notifies the server. These status changes have to be previously defined if the Module type is not a *_proc (e.g. network interfaces or general network connectivity).
  • It is a standalone server, it does not require connection to Pandora FMS database. It sends all data as XML, so that it works as an independent server, similar to a Software Agent in broker mode or to an Export Server.
  • It has an autodiscovery mechanism for SNMP and WMI, so it creates detected Agents (by IP address), as well as dynamic elements (network interfaces, storage) and monitors them automatically.
  • On MS Windows® systems, it detects disks, CPU and memory.
  • In network systems with SNMP, it detects interface status, incoming and outgoing traffic per interface, and the system name.
  • Auto-generated Modules can be modified as another module, managing the Agent from the console, as if it were an ordinary Agent (in the Massive Operations → Satellite section).
  • Agents can be created manually by generating an Agent configuration file in the Satellite Server configuration directory.
  • Both the Satellite server and the Network Server support IPv6 in all its advanced features.

Installation

Online installation tool

Please contact the sales team, ask for a quotation or ask your questions about licenses at this link.

This tool supports Rocky Linux 8.x, AlmaLinux 8.x and RHEL 8.x .

Requirements for the use of the online installation tool:

  • Have access to the Internet.
  • Have curl installed (it comes by default in most distributions).
  • Be an administrator user root.
  • Have a supported OS.
  • In the case of using RHEL 8, it will be necessary to activate it previously with a license and be subscribed to the standard repositories.

To use the online installation tool, just access the command line provided by your Cloud provider, with root admin user, and run:

export PANDORA_SERVER_IP='<PandoraServer IP or FQDN>' && curl -Ls https://pfms.me/satellite-ent-deploy| bash

Custom installation using the online installation tool:

  • PANDORA_SERVER_IP: IP address or FQDN of Pandora FMS server to which the Satellite server will point. Mandatory parameter.
  • TZ: Satellite server time zone. Optional parameter.
  • SATELLITE_SERVER_PACKAGE: Custom URL of Satellite server installation tarball package. Optional parameter.
  • SATELLITE_KEY: Satellite server license for automatic activation. Optional parameter.
  • REMOTE_CONFIG: Remote configuration. Optional parameter, enabled by default (value 1).
  • INSTALL_AGENT: Optional parameter, enabled by default (value 1). It allows installing the Software Agent (all configuration variables of the online agent installer).
  • VMWARE_DEPENDENCIES: Optional, it allows to install VMware® plugin dependencies, disabled by default (0).
  • ORACLE_DEPENDENCIES: Optional, it allows to install dependencies of the Oracle® plugin, disabled by default (0).
  • MSSQL_DEPENDENCIES: Optional, it allows you to install MS SQL Server® plugin dependencies, disabled by default (0).
  • SKIP_KERNEL_OPTIMIZATIONS: Disable the recommended kernel optimization, advanced, disabled by default (0).
env TZ='Europe/Madrid' \
SATELLITE_KEY='SOPORTEDEV00RS0REB3M2T7ZHISO51IIQH52JISJ47VGHIRM...'\
  PANDORA_SERVER_IP='192.168.10.10' \
  REMOTE_CONFIG=1 \
  INSTALL_AGENT=1 \
  VMWARE_DEPENDENCIES=1 \
  ORACLE_DEPENDENCIES=1 \
  MSSQL_DEPENDENCIES=1 \
  SKIP_KERNEL_OPTIMIZATIONS=0 \
sh -c "$(curl -fsSL https://pfms.me/satellite-ent-deploy)"

Satellite Server installation on GNU/Linux

The recommended GNU/Linux operating system is RedHat Enterprise -RHEL- 8 / Rocky Linux 8 (EL8) and it supports EL9.

Install Fping, Nmap and libnsl separately and first configure the EPEL repository. Visit the following link:

https://docs.fedoraproject.org/en-US/epel/#_quickstart

and select the operating system. If Rocky Linux 8 is used:

dnf config-manager --set-enabled powertools
dnf install epel-release

Install Perl with the following command:

dnf install perl

Satellite Server core dependencies: PandoraWMIC (version 762 and later), Fping, Nmap and libnsl. Braa and PandoraWMIC dependencies are attached to the installer.

dnf install fping nmap libnsl

Once you download the package containing the Satellite Server, go to the download folder with root privileges and unzip the binary:

tar -xvzf pandorafms_satellite_server_X.XNG.XXX_x86_64.tar.gz

A folder named satellite_server will be generated. Go to this folder by typing:

cd satellite_server/

To install the Satellite Server itself, run the install command:

./satellite_server_installer --install

Once the process is finished, edit the Satellite configuration file located at:

/etc/pandora/satellite_server.conf

Search for the token server_ip and enter the IP address or domain of the Pandora FMS server to which the Satellite server will connect.

After that, you may save the file and start the service by running the following:

sudo /etc/init.d/satellite_serverd start

In case of any error or malfunction, check the log file at:

/var/log/satellite_server.log

Installation on MS Windows

Pandora FMS Satellite server needs WinPcap and Visual Studio 2010 SP1 (both included in the installer) to work properly.

With administrator rights, run the digitally signed installer (version 762 and later). The installation window will appear in the next step of the installation.

Then enter Pandora FMS license key to continue with the installation.

Please contact the sales team, ask for a quotation or ask your questions about licenses at this link.

In the following section, configure Pandora FMS server address to send data; you may define the network exploration rules for the Satellite Server. It will be necessary to restart the machine for all the changes to be applied.

Once the process is complete, you may start and stop the Satellite Server PFMS service from the MS Windows® Start menu.

Operation of WMI Modules in some MS Windows versions

For MS Windows® security reasons, some versions have limited users to perform remote WMI queries. In case these queries are not performed, the solution is to run the Satellite Server service as Administrator user.

Open services:

Click on the service and enter Properties:

On the Login window, select an account with Administrator permissions and apply the changes:

The service must be restarted to apply the changes.

Configuration

All parameters that require a timeout or expiration time must be specified in seconds (by default 300 seconds, which is equal to 5 minutes).

It is important to note that the latency and SNMP intervals are specific to the state change. In the case of Boolean checks (port state, machine state), the threshold defining the state change is automatic. In the case of numeric values (latency, network traffic on an interface, disk space, CPU, etc.), it is based on the threshold. By default no thresholds are defined; this has to be done in Module definition.

agent_interval

agent_interval xxx

By default, 300 seconds (5 minutes). This will be the time after which data will be sent to the server, regardless of whether the checks made by the Satellite Server have a shorter interval. If necessary, and by default, Agents are created in the corresponding Pandora FMS server according to the time specified here.

If the collected data changes compared to the previous one, it sends it at that moment. If it is the same, it will send it when the interval of that Agent orders it. It is useful to perform very intensive tests and to notify only in the case of a state change.

agent_threads

agent_threads xxx

Number of threads used to send XML data files.

log_file

log_file <path_file>

It specifies the file where the Satellite Server log is written, by default /var/log/satellite_server.log.

recon_task

recon_task xxxxx[,yyyy]

IP addresses/networks used for Autodiscovery, separated by commas. For example:

192.168.50.0/24,10.0.1.0/22,192.168.70.64/26

server_ip

server_ip <IP>

IP address or DNS name of Pandora FMS server to send the information to. The data is sent by Tentacle, so the communication towards the server should be allowed and guaranteed by the port 41121/tcp.

recon_mode

recon_mode <mode_discovery>

Auto-discovery mode ( < mode_discovery > ) to be used. The system will employ the following protocols to discover systems:

  • recon_mode icmp It performs checks to determine if the host is online (ping) and measures latency time.
  • recon_mode snmp If it is able to communicate through SNMP (v1 and v2 only), it will search for all network interfaces and pull traffic from all of them, as well as their operational status, device name and location. It will try with the different communities supplied in the configuration file to connect. For using SNMP v3, whose recognition is unnecessary, see this link how to configure the known access credentials.
  • recon_mode wmi Similar to the previous case, in this case showing CPU, Memory and Disk Load (all available).

recon_community

recon_community <aaa>,<bbb>,<ccc> …

It specifies a comma-separated list of SNMP communities < xxx > for use in SNMP Discovery. It will use this list in SNMP scanning: for each IP address found, it will try to see if it responds to any of these communities.

wmi_auth

wmi_auth Administrator%password[,user%pass]

It specifies a list of pairs of user credentials, each in the format < username >%< password > and separated by commas.

wmi_ntlmv2

wmi_ntlmv2 [0|1]

It enables 1 or disables 0 authentication with the NTLMv2 protocol for WMI.

agent_conf_dir

agent_conf_dir <path>

Path ( < path >) to the directory that automatically creates and stores the configuration files of each Agent created by the Satellite Server. By default /etc/pandora/conf. These Agents can also be manually created.

group

group <group_name>

It defines the default group name < group_name > of the Agents created by the Satellite Server.

daemon

daemon [1|0]

If its value is 1, it runs the daemon (service) in the background (default value).

host_file

host_file <path_filename>

It is an alternative or complementary method to scanning a network to find hosts.

In this file ( < path_filename > ), in each line there is an address. Alternatively, you may type in the same line the hostname followed by the IP address, so that the Agent will be created with that name and also use that IP address for the Modules. It is necessary that when performing a query with fping to these addresses, the result must match for these addresses to be valid.

pandora_license_key

Version 765 or later.

# Encryption key for the Pandora FMS license.
# pandora_license_key

For safe transmission of the license to the Satellite server, you should configure in the Web Console or in the Command Center (Metaconsole) the same encryption key that you will enter in this token.

See also token server_ip .

pandora_license

Since version 761 and later, the licensing of the Satellite server is done automatically and this token becomes obsolete.

pandora_license xxxxxxx

It writes and stores Pandora FMS server license, as shown in the Management → Setup → License section of Pandora FMS Web Console.

You may use the same license in as many Satellite servers as needed, since the total number of Agents using the license is verified in Pandora FMS server, not in the Satellite Server.

remote_config

remote_config [1|0]

It enables by default the remote configuration in the detected Agents, necessary if you want to manage them from the Console after detecting them. It also enables the remote configuration of the Satellite Server itself.

temporal_min_size

temporal_min_size xxx

If the free space (in megabytes) of the partition where the temporary directory is located is less than this value, no data packets are still generated. This prevents the disk from filling up if for some reason the connection to the server is lost for an extended period of time.

xml_buffer

xml_buffer [0|1]

Default value 0. Being configured with value 1, the Agent will save the XML data that it has not been able to send to try again later.

On Unix, if you are in a safe environment consider changing the temporary directory, as /tmp has write permissions for all users.

snmp_version

snmp_version xx

SNMP version to be used, by default 1. To use SNMP v3, see in this link how to configure the known access credentials.

Some Modules may stop working if this value is changed.

braa

braa <path>

< path > to the Braa binary. Default value /usr/bin/braa.

fping

fping <path>

< path > to the Fping binary. Default value /usr/sbin/fping.

fsnmp

fsnmp <path>

< path > to the Fsnmp binary (SNMPv3). Default value /usr/bin/pandorafsnmp.

latency_packets

latency_packets xxx

Number of ICMP xxx packets sent per latency request.

nmap

nmap <path>

< path > to the Nmap binary. Default value /usr/bin/nmap.

nmap_timing_template

nmap_timing_template x

An x value specifying the level of aggressiveness of Nmap, from 1 to 5. One means slower but more reliable, five means faster but less reliable. Default value: 2.

ping_packets

ping_packets xxx

Number of ICMP packets sent per ping.

recon_enabled

recon_enabled [0|1]

It enables (1) or disables (0) the equipment autodiscovery.

recon_timing_template

recon_timing_template xxx

Like nmap_timing_template but applied to network scans.

server_port

server_port xxxxx

Port number of the Tentacle server.

server_name

server_name xxxxx

Name of the Satellite server (by default it takes the hostname of the machine).

server_path

server_path <path>

< path >' where XML files are copied if the transfer_mode is set to local (default /var/spool/pandora/data_in).

server_opts

Server parameters that are passed to Tentacle.

transfer_mode

transfer_mode [tentacle|local]

File transfer mode. It can be only tentacle or local (default tentacle).

snmp_verify

snmp_verify [0|1]

It enables (1) or disables (0) the checking of SNMP v1 modules that cause Braa to fail in real time. These Modules will be discarded and will stop running. See also both snmp2_verify and snmp3_verify.

snmp2_verify

snmp2_verify [0|1]

It enables (1) or disables (0) the checking of SNMP v2 modules that cause Braa to fail in real time. These modules will be discarded and will stop running. See also both snmp_verify and snmp3_verify.

Testing SNMP version 2 modules can be very slow.

snmp3_verify

snmp3_verify [0|1]

It enables (1) or disables (0) the checking of SNMPv3 modules that cause Braa to fail in real time. These modules will be discarded and will stop running. See also both snmp_verify and snmp2_verify.

To use SNMP v3, see in this link how to configure the known access credentials.

snmp3_seclevel

Security level used for SNMPv3 messages (noauth, authnopriv or authpriv).

To use SNMP v3, see in this link how to configure the known access credentials.

snmp3_secname

Security name used for SNMPv3 messages.

To use SNMP v3 see in this link how to configure the known access credentials.

snmp3_authproto

Authentication protocol (md5 or sha) for authenticated SNMPv3 requests.

To use SNMP v3, see in this link how to configure the known access credentials.

snmp3_authpass

Authentication password for authenticated SNMPv3 request.

To use SNMP v3, see in this link how to configure the known access credentials.

snmp3_privproto

Privacy protocol (des or aes) for encrypted SNMPv3 requests.

To use SNMP v3, see in this link how to configure the known access credentials.

snmp3_privpass

Privacy password for encrypted SNMPv3 messages.

To use SNMP v3, see in this link how to configure the known access credentials.

startup_delay

startup_delay xxx

Wait xxx seconds before sending data files for the first time.

temporal

temporal <directory>

Temporary directory where XML files are created, by default /tmp.

tentacle_client

tentacle_client <path>

< path > of the Tentacle client. Default value /usr/bin/tentacle_client.

wmi_client

wmi_client <path>

< path > to the wmi_client binary. Default value /usr/bin/wmic.

snmp_blacklist

snmp_blacklist <path>

< path > to the SNMP Module exclusion list. Default value /etc/pandora/satellite_server.blacklist.

add_host

add_host <IP_addr> [ agent_name ]

Adds the given host ( [ agent_name ] ) to the list of monitored agents. You may specify the Agent name after the IP address ( < IP_addr > ). Multiple hosts can be added, one on each line separately.

ignore_host

ignore_host <agent_name>

It removes the given host from the list of monitored Agents, even if it is found in a network scan by a Recon Task. The host must be identified by the Agent name. Multiple hosts can be ignored, one per line.

delete_host

delete_host <agent_name>

It removes the given host from the list of monitored Agents permanently by deleting its configuration file. The host must be identified by the Agent name < agent_name >. Multiple hosts can be deleted, one per line.

keepalive

keepalive xxx

The Satellite Server reports its status and checks for changes in the remote configuration (of the Agents and itself) every xxx seconds. Default value: 30 seconds.

credential_pass

credential_pass xxx

Password used to encrypt the passwords of the credential boxes. It should be the same as the one defined in Pandora FMS Console. By default the host name is used.

timeout_bin

timeout_bin <path>

If defined, the timeout program (usually /usr/bin/timeout) will be used when calling the Tentacle client.

timeout_seconds

timeout_seconds xxx

Timeout time, in seconds, for the timeout program. The timeout_bin parameter must be set.

proxy_traps_to

proxy_traps_to <dir_IP[:port]>

It redirects SNMP traps received by the Satellite Server to the address (and port, optionally) specified. By default port 162 is used.

proxy_tentacle_from

proxy_tentacle_from <dir_IP[:port]>

It redirects data received by Tentacle server from the address (and port, optionally) specified. By default, port 41121 is used.

proxy_tentacle_to

proxy_tentacle_to <dir_IP[:port]>

It redirects Tentacle client requests received by the Satellite Server to the address (and port, optionally) specified. By default, port 41121 is used.

This option may be in conflict with remote configuration of agents. This happens should you intend to use the Satellite Server as a proxy for some Software Agents and monitor them remotely from the Satellite Server itself (ICMP, SNMP, etc.) with remote configuration enabled in both cases. In this situation you should either use different Agents for the checks made (i.e. with different agent_name), or leave the remote configuration enabled only in one of the two (Satellite Server or Software Agents).

dynamic_inc

dynamic_inc [0|1]

With a value of 1, it moves automatically discovered dynamic modules (SNMP, WMI,…) to separate files so that they do not interfere with remote configuration of Agents.

vlan_cache_enabled

vlan_cache_enabled [0|1]

It enables (1) or disables (0) the VLAN cache of auto-discovered hosts.

verbosity

verbosity <0-10>

Level of detail in the log record, where 10 is the most detailed level of information.

agents_blacklist_icmp

agents_blacklist_icmp 10.0.0.0/24[,8.8.8.8/30]

ICMP check exclusion list. This field can be configured with a list of IP addresses using CIDR notation to prevent ICMP type modules from being executed. Multiple subnets can be specified by separating them by commas.

agents_blacklist_snmp

agents_blacklist_snmp 10.0.0.0/24[,8.8.8.8/30]

SNMP check exclusion list. This field can be configured with a list of IP addresses using the CIDR notation to prevent SNMP modules from running. Multiple subnets can be specified by separating them by commas.

agents_blacklist_wmi

agents_blacklist_wmi 10.0.0.0/24[,8.8.8.8/30]

WMI check exclusion list. This field can be configured with a list of IP addresses using CIDR notation to prevent WMI modules from running. Multiple subnets can be specified by separating them by commas.

general_gis_exec

general_gis_exec xxx

Enabling this option will use a script to provide GIS positioning to all Agents detected by the Satellite Server. The script must have execution permissions and display the coordinates in format <longitude>,<latitude>,[<altitude>] The third parameter, the altitude, is optional.

forced_add

force_add [0|1]

If set to 1, hosts added manually (via host_file or add_host) will always be created, even if they do not respond to ping, with a configuration file without modules.

agent_block

agent_block XX

Number of XML data files sent in a single call to tentacle client, by default 50.

conf_interval

conf_interval XXX

Remote configuration check interval, by default 300 seconds.

exec_interval

exec_interval XXX

Time between execution checks, by default 300 seconds.

exec_threads

exec_threads X

Number of threads used for module execution, 5 by default. It will depend on the power (CPU and RAM) of the machine. The more threads, the more the system will be loaded, but the more processing capacity it will have. When exceeding 20 threads, depending on the system, performance may become poor.

latency_block

latency_block XXX

Number of hosts processed in a single call to nmap (latency), by default 400.

The higher the number (maximum 500), the more processing capacity you will have, but at the cost of increased latency. In some cases it may be convenient to reduce this number.

latency_interval

latency_interval XXX

Time between latency checks, by default 180 seconds.

latency_retries

latency_retries X

Number of retries for latency modules, by default 2 attempts.

latency_threads

latency_threads X

Number of threads used for the latency check, by default 4 threads.

latency_timeout

latency_timeout X

Timeout for latency checks in seconds, by default 1.

ping_block

ping_block XXX

Number of hosts processed in a single nmap (ping) call, by default 400.

The higher the number (maximum 500), the more processing capacity you will have, but at the cost of increased latency. In some cases it may be convenient to reduce this number.

ping_interval

ping_interval XXX

Time between ping checks, 120 seconds by default.

ping_retries

ping_retries X

Number of retries for latency modules, 2 by default.

ping_threads

ping_threads X

Number of threads used for ping checks, 4 by default.

ping_timeout

ping_timeout X

Timeout for ping checks in seconds, by default 1.

plugin_interval

plugin_interval XXX

Time between plugin checks, by default 300 seconds.

plugin_threads

plugin_threads X

Number of threads used for plugin testing, by default 2 threads.

plugin_timeout

plugin_timeout XX

Timeout for plugin checks in seconds, by default 10 seconds.

recon_interval

recon_interval XXXXXX

Time between network scans in seconds, by default 604800 seconds.

snmp2_block

snmp2_block XX

Number of hosts processed in a single call to Braa (SNMPv2c), 50 by default.

snmp2_interval

snmp2_interval XXX

Time between SNMP checks (SNMPv2c), by default 180 seconds.

snmp2_retries

snmp2_retries X

Number of retries for SNMP modules (SNMPv2c), by default 2 retries.

snmp2_threads

snmp2_threads X

Number of threads used for SNMP checks (SNMPv2c), by default 8 threads.

snmp2_timeout

snmp2_timeout X

Timeout for SNMP checks (SNMPv2c) in seconds, by default 5.

snmp3_block

snmp3_block XX

Number of hosts processed in a single call to Braa (SNMPv3), 50 by default.

snmp3_interval

snmp3_interval XXX

Time between SNMP checks (SNMPv3), by default 180 seconds.

snmp3_retries

snmp3_retries X

Number of retries for SNMP modules (SNMPv3), by default 2 retries.

snmp3_threads

snmp3_threads X

Number of threads used for SNMP checks (SNMPv3), by default 4 threads.

snmp3_timeout

snmp3_timeout X

Timeout for SNMP checks (SNMPv3) in seconds, by default 5 seconds.

snmp_block

snmp_block XX

Number of hosts processed in a single call to Braa (SNMPv1), by default 50.

snmp_interval

snmp_interval XXX

Time between SNMP checks (SNMPv1), by default 180 seconds.

snmp_retries

snmp_retries X

Number of retries for SNMP modules (SNMPv1), 2 by default.

ssh_interval

ssh_interval XXX

Time between SSH checks, by default 300 seconds.

ssh_threads

ssh_threads XXX

Number of threads used for SSH modules, by default 5 threads.

ssh_timeout

ssh_timeout X

Timeout for SSH checks in seconds, by default 2 seconds.

tcp_interval

tcp_interval XXX

Time between TCP checks, by default 300 seconds.

tcp_threads

tcp_threads X

Threads dedicated to TCP checks, by default 5 threads.

tcp_timeout

tcp_timeout X

Timeout for TCP checks, by default 1 second.

snmp_threads

snmp_threads X

Number of threads used for SNMP checks (SNMPv1), by default 8 threads.

snmp_timeout

snmp_timeout X

Timeout for SNMP checks in seconds (SNMPv1), by default 5 seconds.

wmi_interval

wmi_interval XXX

Time between WMI checks, by default 300 seconds.

wmi_threads

wmi_threads X

Threads dedicated to WMI polling, by default 5 threads.

ipam_task

ipam_task <id IPAM TASK> , <CIDR>

Comma-separated list of networks (in SLASH notation) to be scanned by IPAM. They must be preceded by the IPAM task identifier assigned in PFMS when created (the Discovery server field must be left unassigned to be assigned later to a Satellite server). For example: 1,192.168.0.0/24.

ipam_interval

ipam_interval XXXXXX

Time between scanning tasks in seconds.

Secondary Server

secondary_mode [on_error|always]

A special type of general configuration parameter is the definition of a secondary server. This allows you to define a server to which data is sent, in addition to the server defined by default. The secondary server mode works in two ways:

  • on_error: It sends data to the secondary server, only if it cannot send it to the primary server.
  • always: It always sends data to the secondary server, regardless of whether or not it can contact the primary server.
secondary_server_ip     192.168.1.123
secondary_server_path   /var/spool/pandora/data_in
secondary_mode          on_error
secondary_transfer_mode tentacle
secondary_server_port   41121

Remote configuration

Remote file configuration

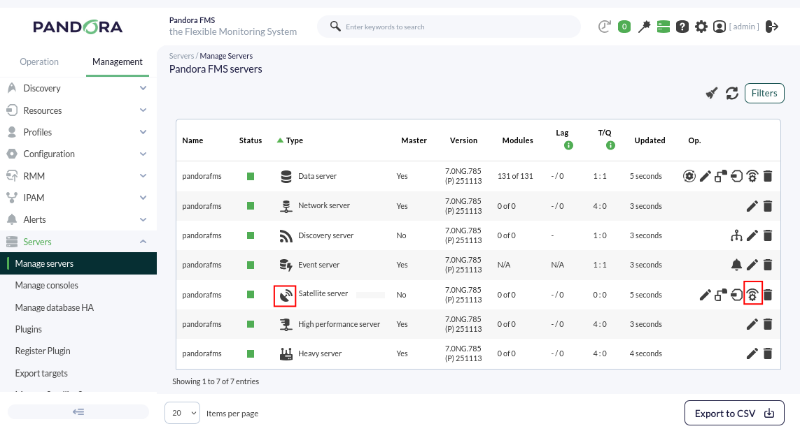

The advanced editor for remote configuration of the Satellite server can be accessed on PFMS server to which the Satellite server belongs through the menu Management → Servers → Manage servers. Once the page has loaded in the web browser, click on the Remote configuration icon.

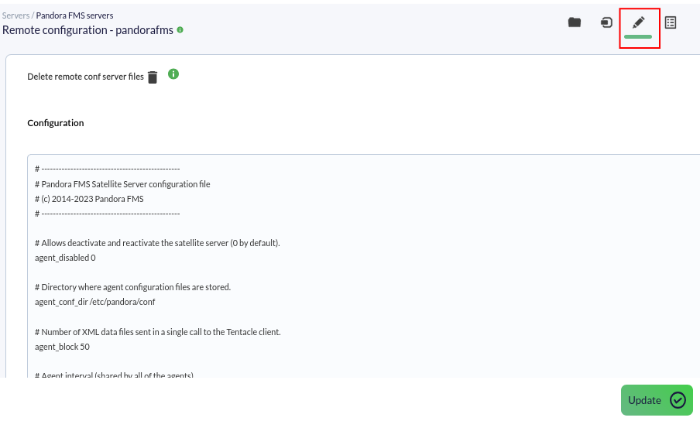

Then click on the Advanced editor icon:

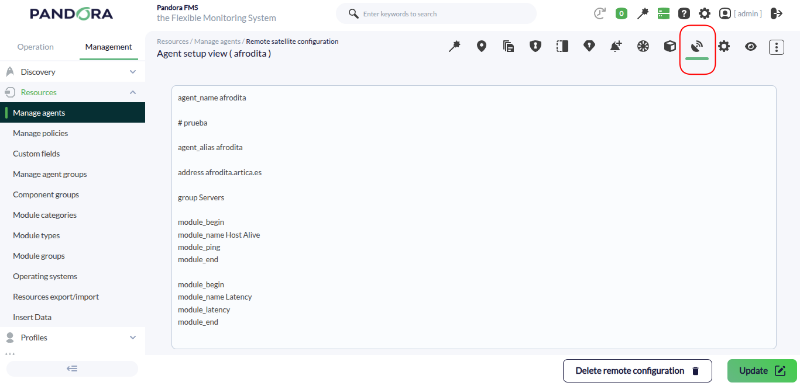

In the text box corresponding to Configuration, you will be able to edit and/or add each of the tokens described in previous sections. When finished editing, save the changes by clicking Update located at the bottom of the page.

The synchronization and loading of the new tokens will take some time. Please allow a few moments for the changes to propagate.

Remote configuration graphical interface

Version NG 764 or later.

The graphical interface on PFMS server to which the Satellite server belongs can be accessed remotely through the Management → Servers → Manage servers menu and then clicking on the Remote configuration icon.

Use dynamic search to enter key text (one letter or more) and search for a specific token.

Some tokens only accept two values (ON / OFF), the first button is used to change this value. If you enable or disable the corresponding token with the second button, the Satellite server will take the default value assigned to it (1 or 0) regardless of the value set by the first button.

Once you make all the changes, click Update to save the preferences.

Agent Creation in Satellite Server

There are three ways to create the Agents in the Satellite Server: Recon Task, satellite_hosts.txt file or manually by creating the .conf files of the Agents to be monitored.

Agent Creation through Recon Task

Agent creation through a Recon Task is the most used by Pandora FMS users. To carry it out, access the Satellite Server configuration file and configure the following parameters:

  • recon_community: A comma-separated list of SNMP communities for use in SNMP Discovery must be specified (in the case of performing an SNMP Recon Task).
  • recon_enabled: It must be set to 1 to enable the Satellite Server's Recon Task.
  • recon_interval: Time interval where the network is scanned, in seconds (default 604800 seconds, 7 days).
  • recon_mode: Mode of Recon Task (SNMP, ICMP, WMI), separated by commas.
  • recon_task: List of networks to be surveyed, separated by commas.
  • recon_timing_template: A value specifying how aggressive nmap will be, from 1 to 5. One means slower but more reliable; five means faster but less reliable (default 3).

An example of a Recon Task realization is:

 recon_community public
 recon_enabled 1
 recon_interval 604800
 recon_mode icmp,snmp,wmi
 recon_task 192.168.0.0/24,192.168.1.0/24
 recon_timing_template 3

Once the data has been configured, the Satellite Server is run using the command:

/etc/init.d/satellite_serverd start

Agents whose configuration files do not contain any Modules will be ignored by the Satellite Server.

Agent configuration by file

First of all, in order to create an Agent using the satellite_hosts.txt file, go to the Satellite Server configuration file and remove the comment line:

host_file /etc/pandora/satellite_hosts.txt

Secondly, the file must be created in the path indicated above with the IP addresses of the hosts to be created by entering the IP address and name of the Agent:

192.168.10.5 Server5
192.168.10.6 Server6
192.168.10.7 Server7

In order for Agents with these IP addresses to be created, they must respond to the fping call, otherwise they will not be created.

Once the data has been configured, the Satellite Server is started with the command:

/etc/init.d/satellite_serverd start

The indicated file is read every recon_interval seconds.

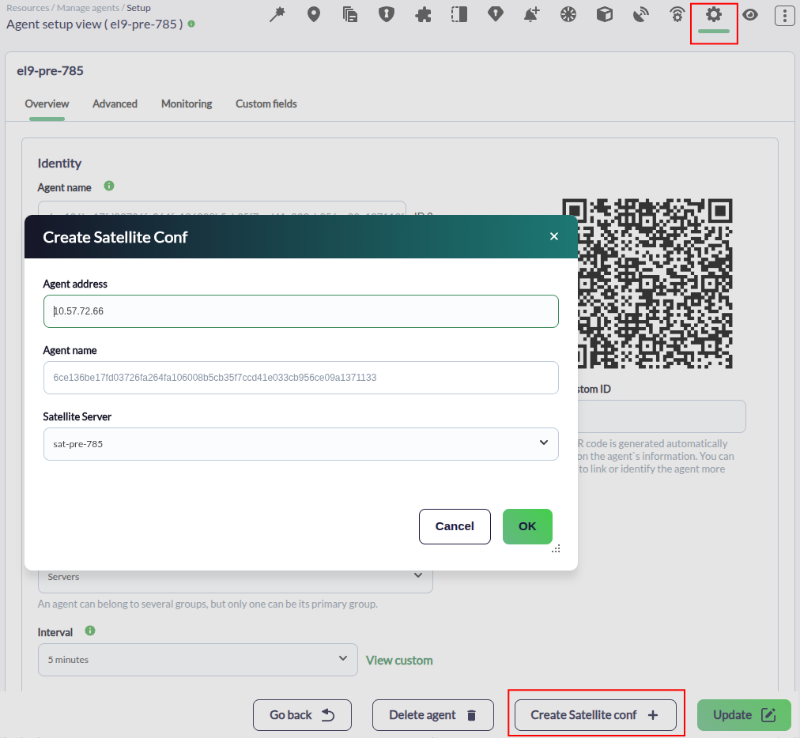

Manual agent creation

In the directory /etc/pandora/conf (by default) the configuration files of the new Agents are stored. Open a terminal window and go to this folder:

cd /etc/pandora/conf

Then proceed to create a file with a .conf extension, for example “file.conf”. The following fields must be filled in manually:

  • agent_name: Name to be assigned to the Agent.
  • agent_alias: Alias to be assigned to the Agent.
  • address: IP address of the element to be monitored.
  • group: Group to which to assign the Agent.
  • gis_exec: Positioning script (optional). If used, it overwrites the location provided by the general_gis_exec parameter of the Satellite Server.
  • The Modules to be created in the Agent are added.

An example would be:

agent_name Example
agent_alias This is an example
address 127.0.0.1
group Servers

module_begin
module_name Ping
module_ping
module_end

module_begin
module_name Latency
module_latency
module_end

Once the data has been configured, the Satellite Server is started with the command:

/etc/init.d/satellite_serverd start

Agent removal in Satellite Server

A total Agent deletion or a partial Agent deletion can be performed.

First make a backup of all folders and their files before proceeding.

For total Agent deletion, the method used in Agent creation must be taken into account:

  • Manual: First of all, the .conf files of the Agents created in the /etc/pandora/conf folder must be deleted and then Agents must be deleted in the console.
  • Filesatellite_hosts.txt: The file will have to be deleted, as well as the .conf files that have been created in the /etc/pandora/conf folder, and then delete the Agents in the Console.
  • Recon_task: It will be necessary to deconfigure the recon_task in the .conf file of the Satellite Server, delete the .conf that have been created in the /etc/pandora/conf folder and then delete the Agents in the Console.

For partial deletion, the method used in the creation of Agents must also be taken into account.

  • Manual: First of all, the .conf files of the Agents to be deleted in the /etc/pandora/conf folder must be deleted and then the Agents must be deleted in the console.
  • Filesatellite_hosts.txt: It will be necessary to delete from the file, the lines of the IP addresses to be deleted, as well as the .conf that have been created in the folder /etc/pandora/conf with those IP addresses, and then delete the Agents in the console.
  • Recon_task: You will have to configure the recon_task excluded list in the .conf file of the Satellite Server, then delete the .conf that have been created in the /etc/pandora/conf folder with those IP addresses and delete the Agents in the console.

Customized configurations per Agent

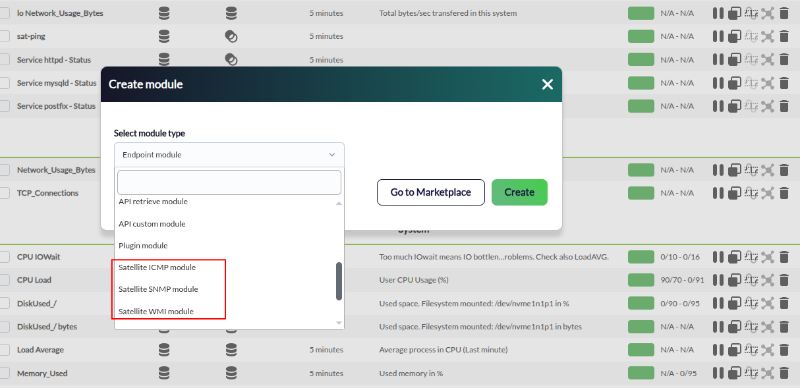

In addition to “automatic” Modules, any TCP, SNMP, WMI or SSH check that is available can be added to the monitoring, using a syntax similar to the one used for local Modules in Software Agents. Some examples of valid Modules for the Satellite Server are exposed, as they are autogenerated after detecting the system.

ICMP/TCP queries

Connectivity to a machine (through PING):

module_begin
module_name ping
module_type generic_data
module_ping 192.168.70.225
module_end

Checking a port (through TCP):

module_begin
module_name Port 80
module_type generic_proc
module_tcp
module_port 80
module_end

Consultas WMI

WMI query for CPU usage (percentage):

module_begin
module_name CPU
module_type generic_data
module_wmicpu 192.168.30.3
module_wmiauth admin%none
module_end

WMI query for free memory (percentage):

module_begin
module_name FreeMemory
module_type generic_data
module_wmimem 192.168.30.3
module_wmiauth admin%none
module_end

Generic WMI query:

module_begin
module_name GenericWMI
module_type generic_data_string
module_wmi 192.168.30.3
module_wmiquery SELECT Name FROM Win32_ComputerSystem
module_wmiauth admin%none
module_end

SNMPv1 and SNMPv2 queries

Make sure that the OIDs begin with a dot or the SNMP modules will not work!

Interface status through SNMP. The Satellite Server automatically detects each interface:

module_begin
module_name if eth1 OperStatus
module_description IP address N/A. Description: The current operational state of the interface. The testing(3) state indicates that no operational packets can be passed.
module_type generic_data_string
module_snmp 192.168.70.225
module_oid .1.3.6.1.2.1.2.2.1.8.3
module_community artica06
module_end

To force the module to use SNMP version 2c, the following line is added:

module_version 2c

To force the module to use SNMP version 1, the following line is added:

module_version 1

For example:

module_begin
module_name if eth1 OperStatus
module_description IP address N/A. Description: The current operational state of the interface. The testing(3) state indicates that no operational packets can be passed.
module_type generic_data_string
module_snmp 192.168.70.225
module_version 2c
module_oid .1.3.6.1.2.1.2.2.1.8.3
module_community artica06
module_end

Generic SNMP query. In this case the Satellite Server automatically retrieves the traffic from each interface, with its “real” descriptive name:

module_begin
module_name if eth0 OutOctets
module_description The total number of octets transmitted out of the interface, including framing characters.
module_type generic_data_inc
module_snmp 192.168.70.225
module_oid .1.3.6.1.2.1.2.2.1.16.2
module_community public
module_end

SNMPv3

To configure an SNMPv3 module, set module_version to 3 and specify:

  • module_seclevel: Security level ( noauth, authnopriv or authpriv ).
  • module_secname: Security name.
  • module_authproto: Authentication protocol ( md5 o sha ).
  • module_authpass: Authentication key.
  • module_privproto: Privacy protocol ( aes o des ).
  • module_privpass: Privacy key, as needed.

Make sure that the OIDs begin with a dot. Otherwise SNMP modules will not work.

module_begin
module_name snmp_noauth
module_type generic_data_string
module_snmp 127.0.0.1
module_version 3
module_oid .1.3.6.1.2.1.1.1.0
module_seclevel noauth
module_secname snmpuser
module_end
module_begin
module_name snmp_authnopriv
module_type generic_data_string
module_snmp 127.0.0.1
module_version 3
module_oid .1.3.6.1.2.1.1.2.0
module_seclevel authnopriv
module_secname snmpuser
module_authproto md5
module_authpass 12345678
module_end
module_begin
module_name snmp_authpriv
module_type generic_data_string
module_snmp 127.0.0.1
module_version 3
module_oid .1.3.6.1.2.1.1.2.0
module_seclevel authpriv
module_secname snmpuser
module_authproto sha
module_authpass 12345678
module_privproto aes
module_privpass 12345678
module_end

The specific SNMPv3 configuration can be shared between Modules by taking it out of the Module declaration, in case it is the same for all (it can also be shared between Agents by moving it to the Satellite Server configuration file):

agent_name snmp
address 127.0.0.1

seclevel authpriv
secname snmpuser
authproto md5
authpass 12345678
privproto des
privpass 12345678

module_begin
module_name snmp_authpriv_1
module_type generic_data_string
module_snmp
module_version 3
module_oid .1.3.6.1.2.1.1.1.0
module_end

module_begin
module_name snmp_authpriv_2
module_type generic_data_string
module_snmp
module_version 3
module_oid .1.3.6.1.2.1.1.2.0
module_end

For component group creation (including SNMPv3) see “SNMP wizard”.

Default Satellite Server configuration file for SNMPv3:

You will need to set your own values and/or credentials, as well as change the necessary protocols or encryption methods. You will need to restart PFMS server for the new configuration values to be read and added into the memory.

# Security level used for SNMPv3 messages (noauth, authnopriv or authpriv).
#snmp3_seclevel authpriv

# Security name used for SNMPv3 messages.
#snmp3_secname

# Authentication protocol (md5 or sha) for authenticated SNMPv3 requests.
#snmp3_authproto sha

# Authentication password for authenticated SNMPv3 request.
#snmp3_authpass

# Privacy protocol (des or aes) for encrypted SNMPv3 requests.
#snmp3_privproto des

# Privacy password for encrypted SNMPv3 messages.
#snmp3_privpass

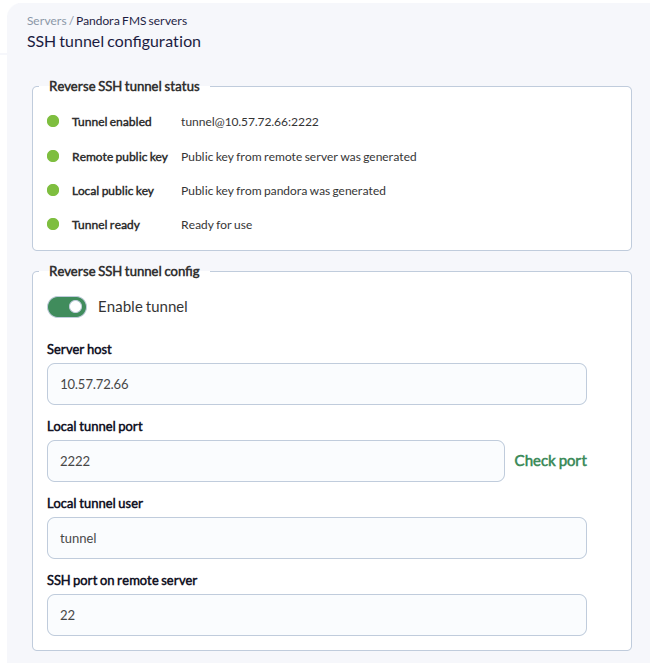

SSH Queries

SSH queries on Satellite servers installed on MS Windows® is still under implementation. PFMS development team is working on it.

Generic SSH command:

module_begin
module_name GenericSSH
module_type generic_data
module_ssh 192.168.30.3
module_command ls /tmp | wc -l
module_end

To enter a threshold, it must be done both in the text definition of the Module (module_min_warning, module_min_critical) and in threshold definition through the web interface:

module_begin
module_name Latency
module_type generic_data
module_latency 192.168.70.225
module_min_warning 80
module_min_critical 120
module_end

Execution Modules can be created manually. The scripts or commands executed by the Satellite Server must be previously deployed and accessible by it. In this sense, it works in the same way as a module_exec of an Agent. Note that the use of module_exec may cause Satellite Server performance to become poor.

module_begin
module_name Sample_Remote_Exec
module_type generic_data
module_exec /usr/share/test/test.sh 192.168.50.20
module_min_warning 90
module_min_critical 95
module_end

Queries with plugins

From Pandora FMS version 7 onwards, plugins can also be added. Like these, you have to take into account that the plugins will be executed in the machine where the Satellite Server is running. Therefore, it will be necessary to implement in these plugins some method to connect to the remote machine that needs to be monitored. The advantage over the previous ones is their great flexibility. That way, you may implement conditions and other mechanisms for which a module_exec falls short. The syntax is the same as for Agents. An example of use of a plugin could be the following:

module_plugin /usr/share/pandora/remote_advanced_checks.sh 192.168.0.1

Credential boxes

Unless authentication is configured with private key and public key, SSH Modules require a username (< user > ) and password (< pass > ) to work. Both are registered in the main configuration file, satellite_server.conf, using credential boxes (credential_box ) with the following formats:

network/mask,user,password

network/mask,user,[[encrypted password|]]

SSH queries on Satellite servers installed on MS Windows® is still under implementation. PFMS development team is working on it.

For example:

credential_box 192.168.1.1/32,<user>,<pass1>
credential_box 192.168.1.0/24,<user>,<pass2>

Searches in credential boxes are made from more to less restrictive masks.

Passwords can be encrypted using Blowfish in ECB mode. Make sure that credential_pass is set, otherwise the host name will be used as the default encryption password. The hexadecimal representation of the ciphertext must be surrounded by double square brackets:

credential_box 192.168.1.0/24,<user>,[[80b51b60786b3de2|]]

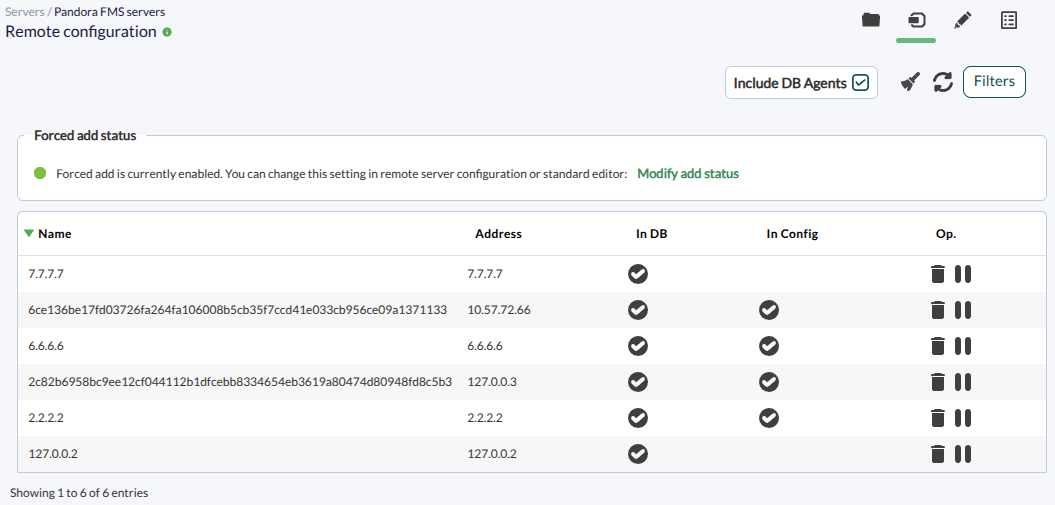

Console view of all Agents

If Satellite Server configuration was successful, you should get an Agent view similar to this one:

Generally, ICMP Modules (Ping and Latency) will be created in all machines, but in some of them SNMP and WMI type Modules may also be generated. On machines with WMI enabled, the following Modules will be generated, if available. On SNMP enabled machines, the following modules will be generated, if available:

In the massive_operations section of Pandora FMS Console there is a special section devoted to the Satellite Server, where it is possible to perform several editing and deleting actions of Agents and Modules in a massive way.

SNMP exclusion list

When monitoring large networks, SNMP Modules that return invalid data can affect the performance of the Satellite Server, and drive other Modules to Unknown status. To avoid this, the Satellite Server can read an exclude list of SNMP Modules that will be discarded at startup before execution.

To create a blacklist, edit the configuration file /etc/pandora/satellite_server.conf and verify that snmp_blacklist is uncommented and configured with the path to the file where the Modules of the blacklist will be saved. Then run:

satellite_server -v /etc/pandora/satellite_server.conf

Restart the Satellite Server. The excluded list can be regenerated as many times as necessary.

The format of the excluded list is:

 agent:OID
 agent:OID
 ...

For example:

 192.168.0.1:.1.3.6.1.4.1.9.9.27
 192.168.0.2:.1.3.6.1.4.1.9.9.27

Back to Pandora FMS documentation index
