Modules generated by the plugin
The plugin will generate :
* prefix is a conf parameter that we can customize by adding any name we want.

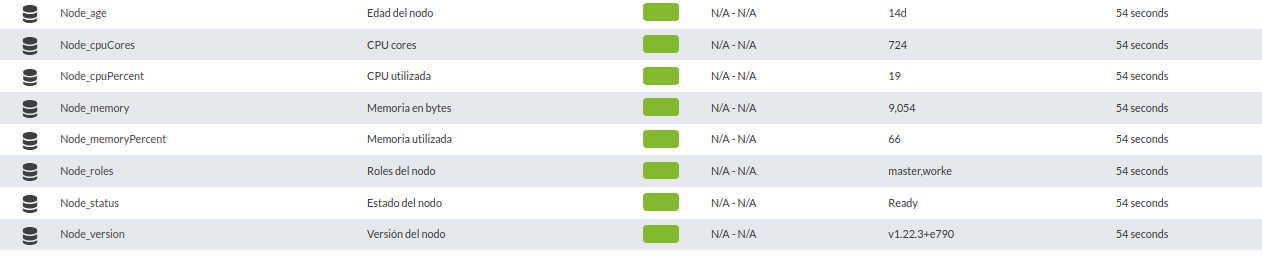

- One agent for each node of the environment with name : prefix_OS_Node_<node name>.
Each node agent will have the following modules :
| Status |
| Roles |
| Age |
| Versión |
| cpu cores |
| cpu % |
| memory bytes |
| memory % |

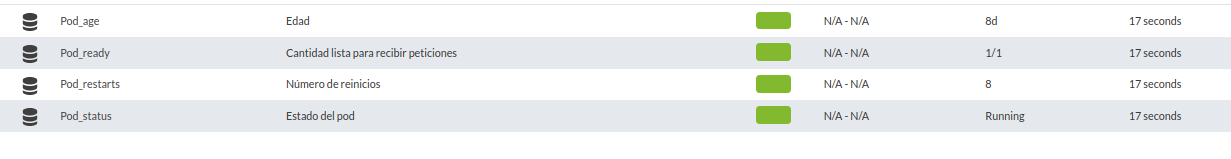

- One agent for each pod in the environment with name : prefix_OS_Pod_<pod name>.
Each pod agent will have the following modules:
| Status |
| Restarts |
| Ready |
| Age |

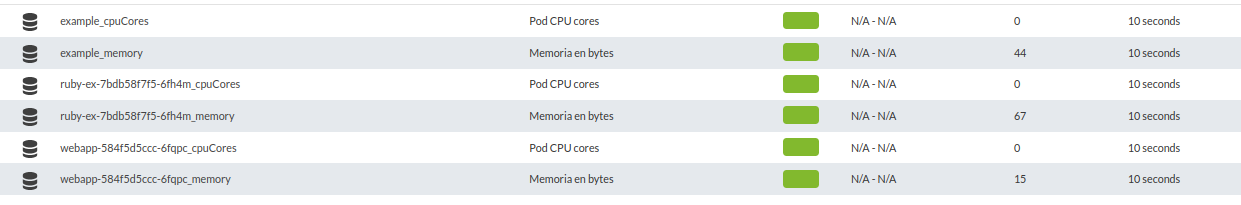

- An agent with name: prefix_OS_POD_Stats
It will create a cpu(cores) module and a memory module for each pod.
| <nombre-pod>_Cpu (cores) |
| <nombre-pod>_Memory (bytes) |

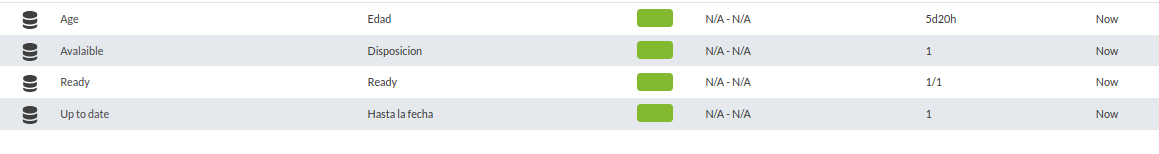

- One agent for each deployment with name :prefix_ OS_Deployment_<deployment-name>.
Each Deployment agent will have the following data :
| Age |
| Avalaible |
| Ready |
| Up to date |

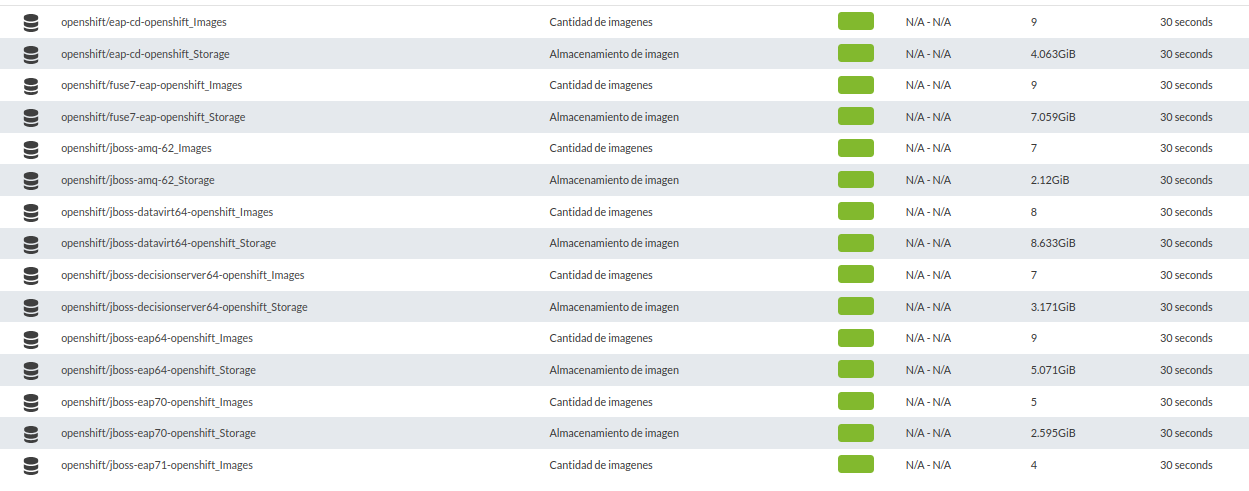

- An agent named "prefix_OS_Imagestreams_stats" with modules for each imagestream in our environment (the number is configured in the .conf).
The agent OS_Imagestreams_stats will contain the following modules for each Imagestream:
| <nombre imagestream> - storage |
| <nombre imagestream> - images |

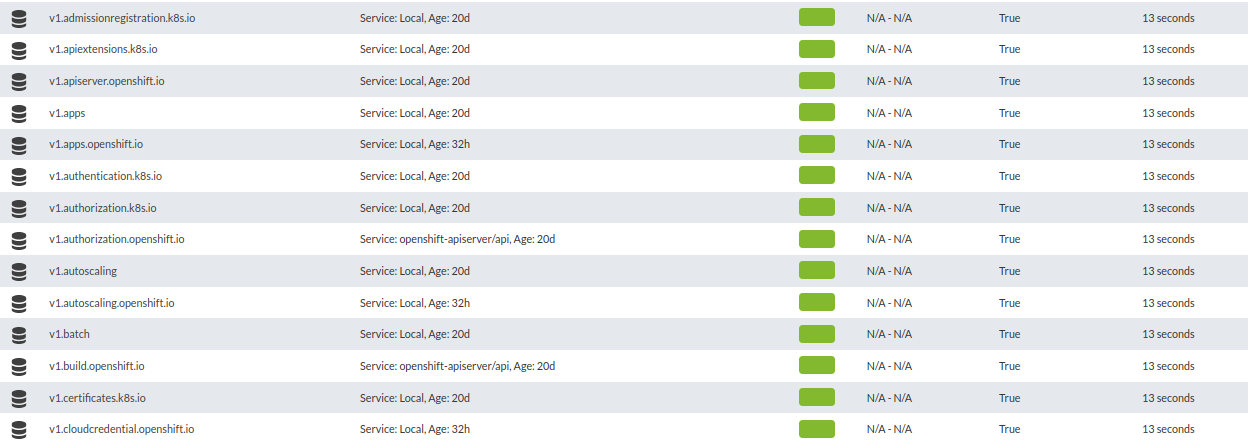

- An agent with name "prefix_OS_Api_service" with modules for each element of our api.
| Elemento API |

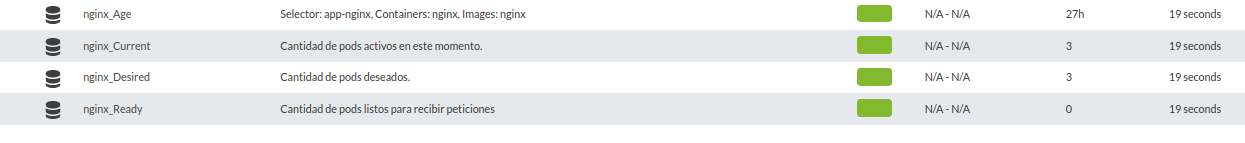

- An agent named "prefix_OS_Replication controllers with the following modules for each replication controller:
| <Replication controller nombre> Desired |
| <Replication controller nombre> Current |
| <Replication controller nombre> Ready |
| <Replication controller nombre> Age |
- An agent named "prefix_OS_Services" with a module for each service in our environment.
| Servicio |
- An agent with name “prefix_OS_Component status” to monitor each component status of the environment.

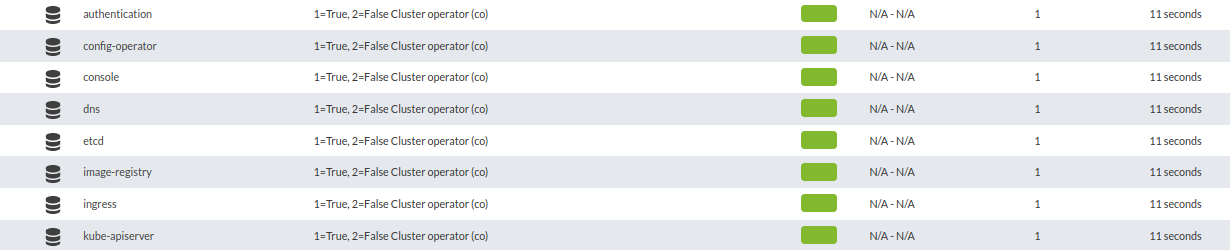

- An agent named “prefix_OS_Operators” to monitor each operator in the environment.

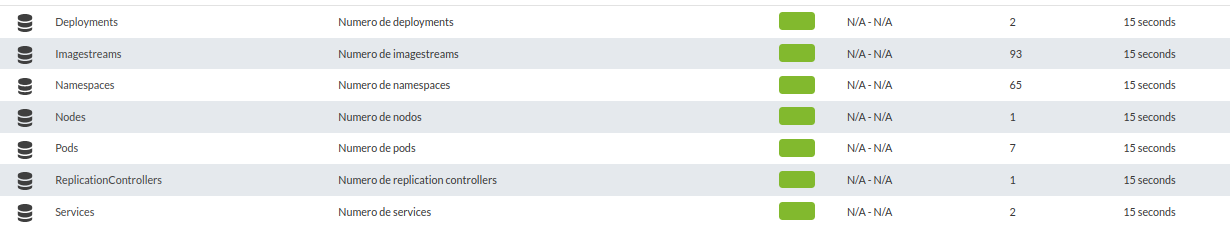

- In addition, the plugin will generate an agent called "prefix_Openshift" with modules that will indicate the number of certain elements in our environment.
The Openshift agent will contain the following modules:
| Services |
| Deployments |
| Namespaces |
| Nodes |
| Pods |
| Imagestreams |
| Replication controllers |
