Configuring message filtering

The plugin makes use of different filters to filter messages.

Topic filtering

For topic filtering, the Filter_topic and Filter_topic_exact_match tags are used.

• Filter_topic

Regular expression or exact text that must match the message topic for the filter to be satisfied. This is optional. By default it would match any topic.

• Filter_topic_exact_match

Indicates whether what is specified in filter_topic will be treated as a regular expression (0) or as an exact text (1). It is optional. Default value is 0.

Examples

Using the Filter_topic and Filter_topic_exact_match filters we can choose the topic to subscribe to.

We can directly indicate the name of the topic or look for a regex pattern in it.

Suppose you have a MQTT topic called:

sensors/temperature/livingroom

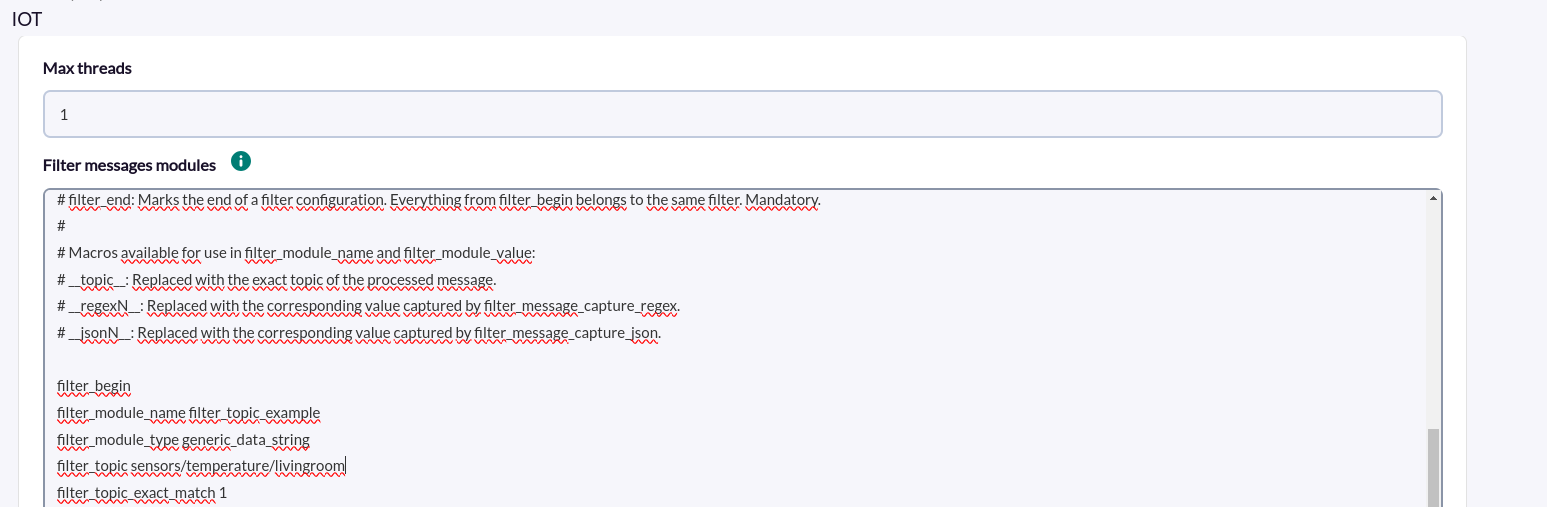

EXAMPLE 1 filter_topic_exact_match 1 (Exact text)

You could configure filter_topic by specifying the topic name.

filter_topic sensors/temperature/livingroom

and set filter_topic_exact_match to 1, so that it searches only that topic.

filter_topic_exact_match 1

If instead of specifying the complete topic name, we specify only a part of the topic:

filter_topic sensors/temperature/

I would also agree.

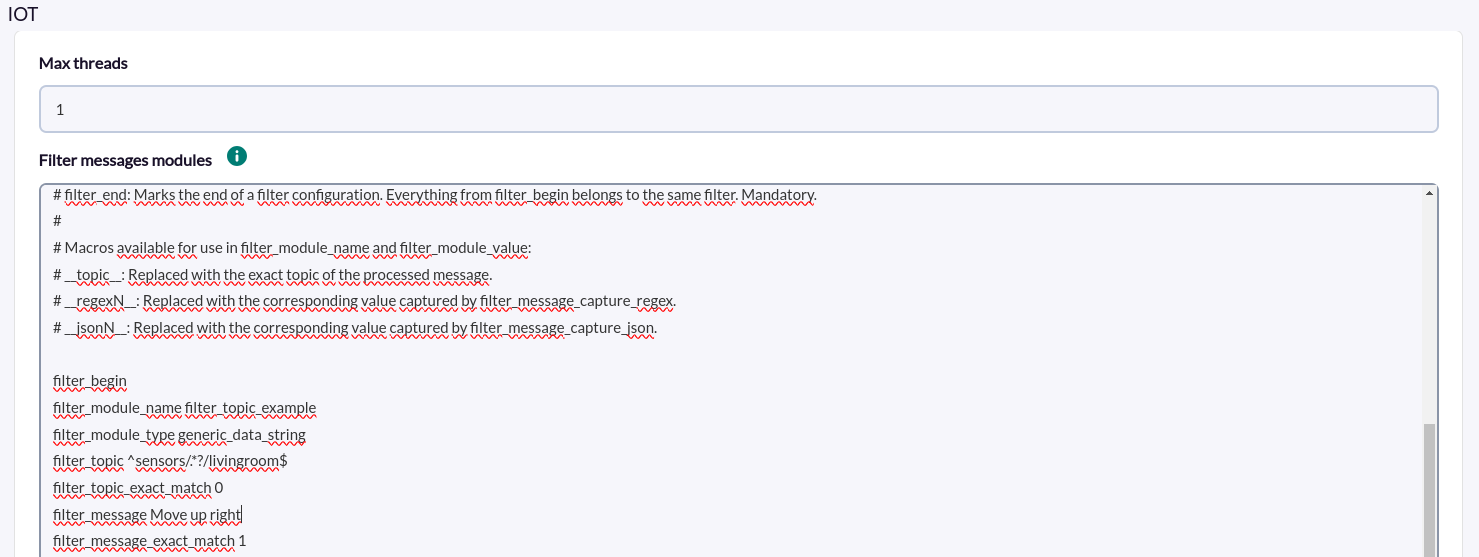

EXAMPLE 2 filter_topic_exact_match 0 (Regular Expression)

You could configure filter_topic by specifying a regular expression that matches the name of the topic you want to subscribe to. For example, the following, which would look to start with “sensors” and end with “livingroom”.

filter_topic ^sensors/.*?/livingroom$

and set filter_topic_exact_match to 0, so that it filters by regular expression, instead of exact text.

filter_topic_exact_match 0

Message filtering

For topic filtering, the Filter_topic and Filter_topic_exact_match tags are used.

• Filter_message

Regular expression or exact text that must match the message for the filter to be satisfied. This is optional. By default it would match any message.

• FIlter_message_exact_match

Indicates whether what is specified in filter_message will be treated as a regular expression (0) or as an exact text (1). It is optional. Default value is 0.

Ejemplos

Using the filters Filter_message and Filter_message_exact_match we can filter the messages to be received.

We can indicate directly the content of the message or look for a regex pattern in it.

Suppose you have a message like this:

{"message":"Move up right",
"status":"active",
"datetime":"2025-02-11T14:30:54.260Z",
"data":{"yaw_rate":0.11466979980468749,
"pitch_rate":0.6159210205078126,
"yaw_direction":"right",
"pitch_direction":"up"}}

EXAMPLE 1 filter_message_exact_match 1 (exact wording)

We could configure filter_message by specifying the message text.

filter_message Move up right

and set filter_topic_exact_match to 1, so that it searches only that topic.

filter_message_exact_match 1

filter_message_exact_match 1

If instead of specifying the complete topic name, we specify only a part of the topic:

filter_message Move up

It would also match

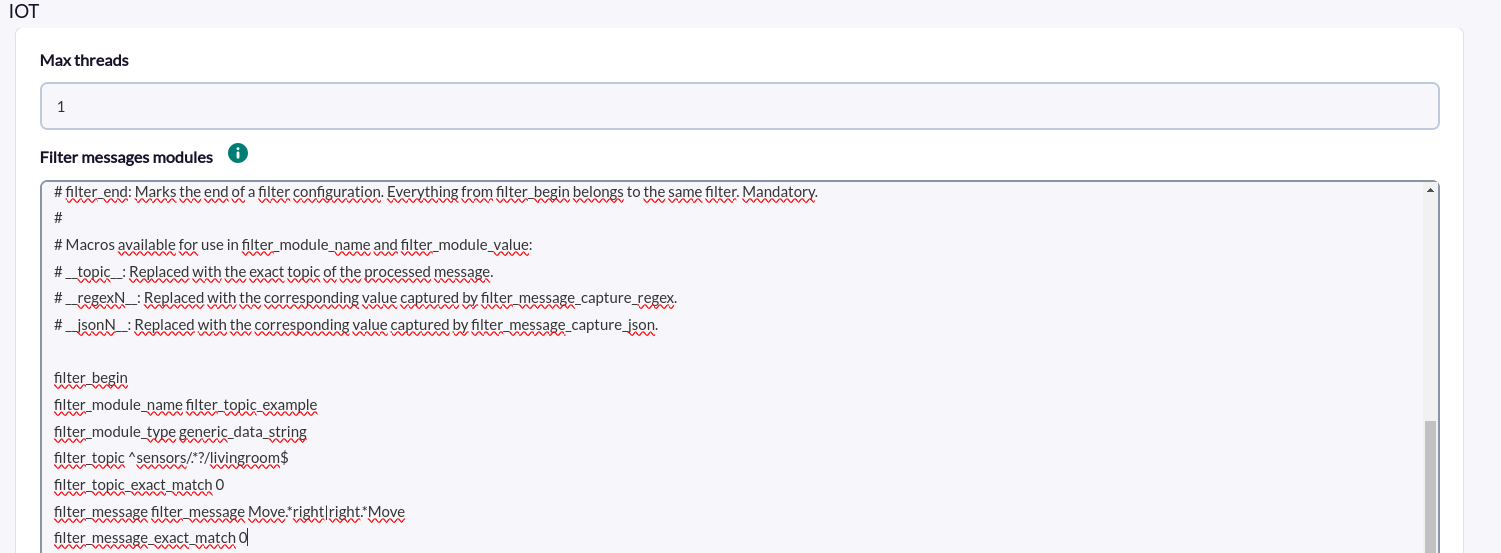

EXAMPLE 2 filter_message_exact_match 0 (Regular Expression)

We could configure filter_message by specifying a regular expression that matches the messages to be filtered. For example, the following would look for a message containing the words “move” and “right”.

---

filter_message Move.*right|right.*Move

filter_message Move.*right|right.*Move

and set filter_message_exact_match to 0, so that it filters by regular expression, instead of exact text.

filter_message_exact_match 0

Macro generation and use



Examples

Imagine we have the following message:

{
  "message": "Move up right",
  "status": "active",
  "datetime": "2025-02-11T14:30:54.260Z",
  "data": {
    "yaw_rate": 0.11466979980468749,
    "pitch_rate": 0.6159210205078126,
    "yaw_direction": "right",
    "pitch_direction": "up"
  }
}

And we want to capture some parts of the message, for example:

• yaw_direction, which is"right".
• pitch_direction, which is "up".
• message, which contains "Move up right".

In addition, we also want to capture the topicto which the message belongs in a macro to include it in the value.

To do this we should follow the following steps, which can be done with Filter_message_capture_regex and FIlter_message_capture_json:

• FIlter_message_capture_regex

With Filter_message_capture_regex a regular expression with capture groups is expected to get values from the message. What matches the capture groups will be stored in macros “__regexN__”, where N is the position of the capture group of the regex. The steps to configure the macros to capture would be the following:

1. Configure filter_message_capture_regex to capture the necessary parts:

We use a regular expression to capture "yaw_direction", "pitch_direction" and the content of "message".

filter_message_capture_regex \"yaw_direction\":\\s?\"(\\w+)\".*\"pitch_direction\":\\s?\"(\\w+)\".*\"message\":\\s?\"([^\"]+)\"

2. Configure filter_module_value to include the macros containing the captured values and the topic.

filter_module_value __topic__ | Dirección de guiñada: __regex1__ | Pitch Direction: Mensaje: __regex3__

Example of complete configuration

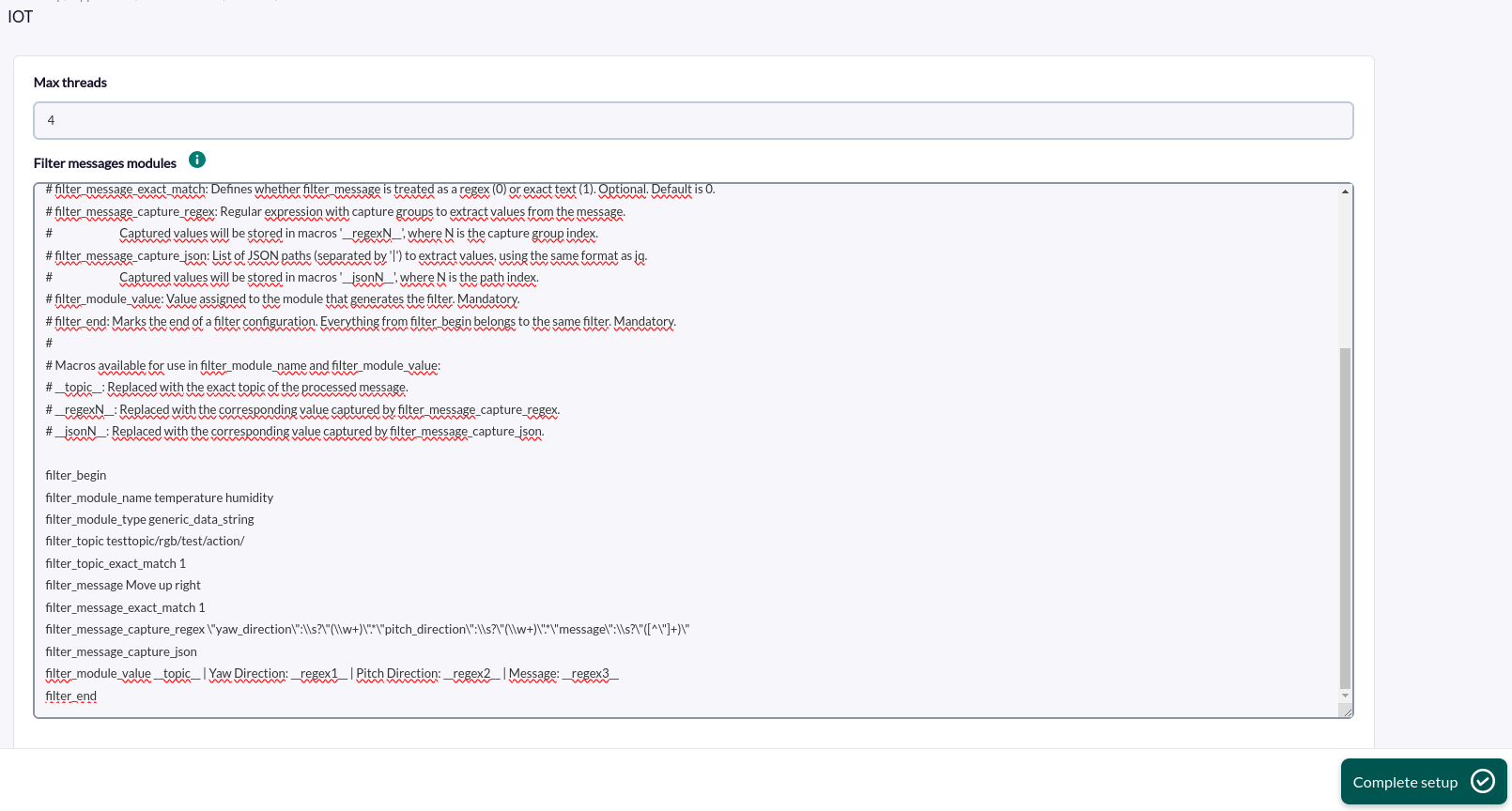

filter_begin​
filter_module_name __topic__ get right
filter_module_type generic_data_string
filter_topic testtopic/rgb/test/action/
filter_topic_exact_match 1
filter_message Move up right
filter_message_exact_match 1
filter_message_capture_regex \"yaw_direction\":\\s?\"(\\w+)\".*\"pitch_direction\":\\s?\"(\\w+)\".*\"message\":\\s?\"([^\"]+)\"
filter_message_capture_json
filter_module_value __topic__ | Yaw Direction: __regex1__ | Pitch Direction: __regex2__ | Message: __regex3__
filter_end

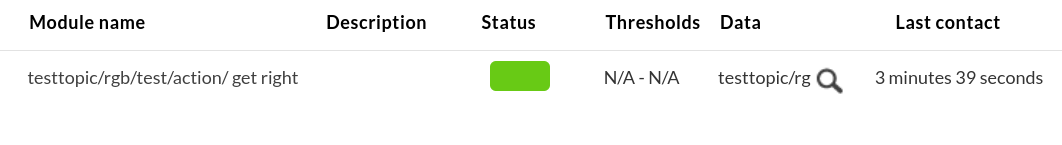

Then, with the previously shown message and configuration examples, the following agent would be created:

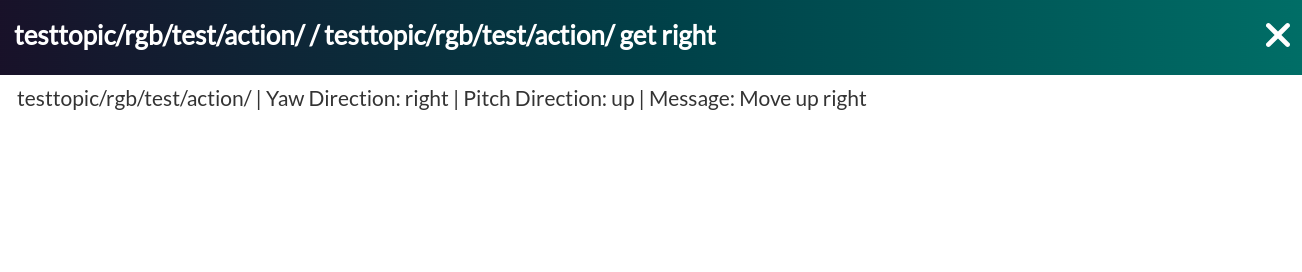

And the following message module:

• Filter_message_capture_json

With Filter_message_capture_json we expect a list of paths within a JSON (separated by “|”) from which to capture their values. Using the same format as the jq command, what is captured for each path will be stored in “__jsonN__” macros, where N is the position of the path in the list . The steps to configure the macros to capture would be the following:

1. Configure filter_message_capture_json to capture the necessary parts of the JSON.

filter_message_capture_json $.data.yaw_direction|$.data.pitch_direction|$.message

JSONPaths must begin with $ because it represents the root of the JSON document.

2. Configure filter_module_value to include the macros containing the captured values and the topic.

filter_module_value __topic__ | Yaw Direction: __json1__ | Pitch Direction: __json2__ | Message: __json3__

Example of complete configuration

filter_begin​
filter_module_name __topic__ get right
filter_module_type generic_data_string
filter_topic testtopic/rgb/test/action/
filter_topic_exact_match 1
filter_message Move up right
filter_message_exact_match 1
filter_message_capture_regex
filter_message_capture_json $.data.yaw_direction|$.data.pitch_direction|$.message
filter_module_value __topic__ | Yaw Direction: __json1__ | Pitch Direction: __json2__ | Message: __json3__
filter_end

Then, with the previously shown message and configuration examples, the following agent would be created:

And the following message module:
