Discovery

This plugin can be integrated with Pandora FMS Discovery.

To do so, the ".disco" package must be loaded. It can be downloaded from the Pandora FMS library:

https://pandorafms.com/library/

Once loaded, HAProxy instances can be monitored by creating Discovery tasks from the Management > Discovery > Application > HAProxy section.

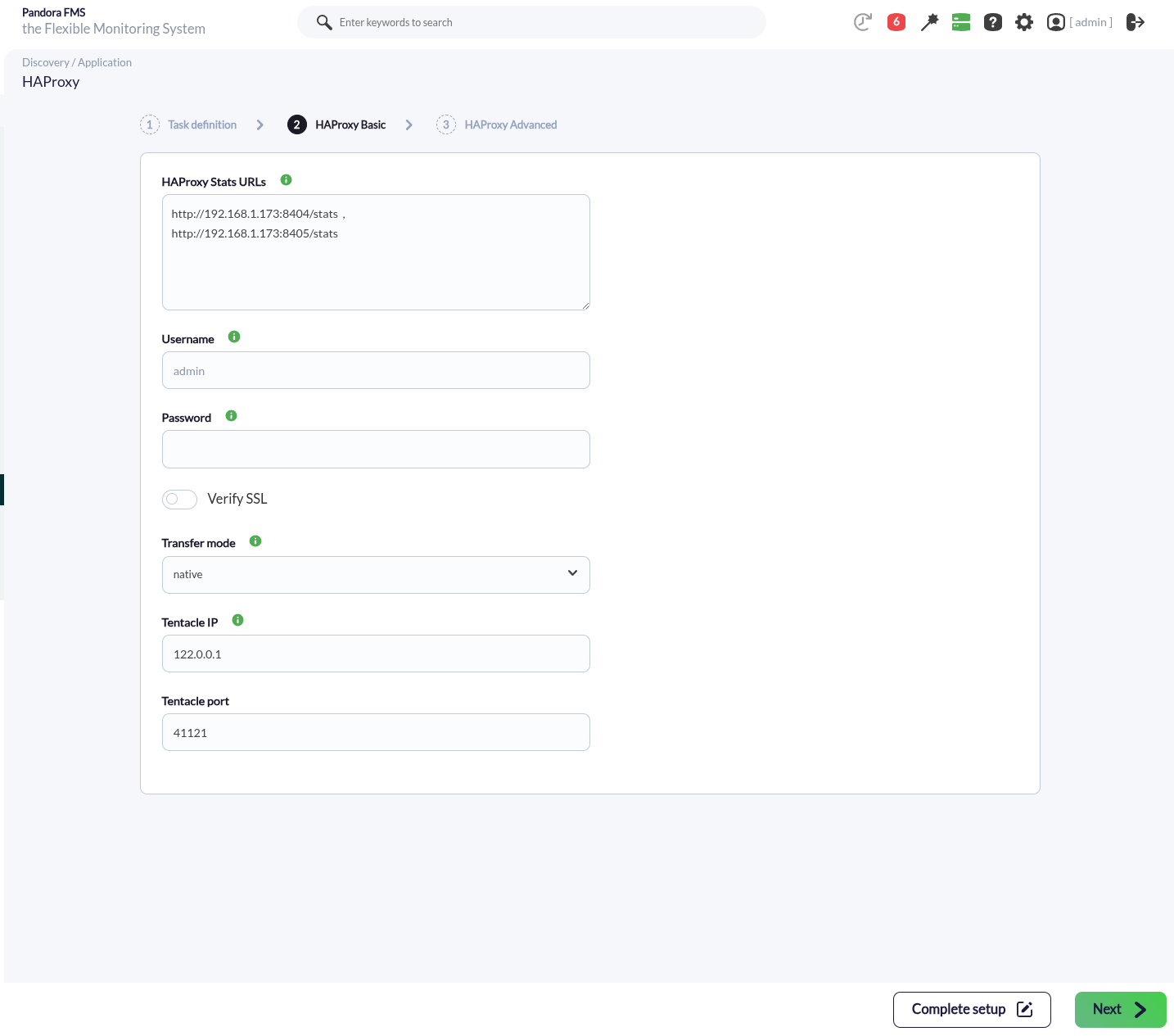

Each task will require the following minimum data in the HAProxy Basic step:

  • HAProxy Stats URLs: HAProxy stats endpoint URLs, comma-separated or one per line. Each URL will create one agent.
  • Username: HAProxy endpoint user if basic authentication is required, optional
  • Password: HAProxy endpoint password if basic authentication is required, optional
  • Verify SSL: enabled if the URL has an SSL certificate to be verified, disabled by default
  • Transfer mode: transfer mode (native or tentacle), optional
  • Tentacle IP: tentacle IP, optional
  • Tentacle port: Tentacle port, optional

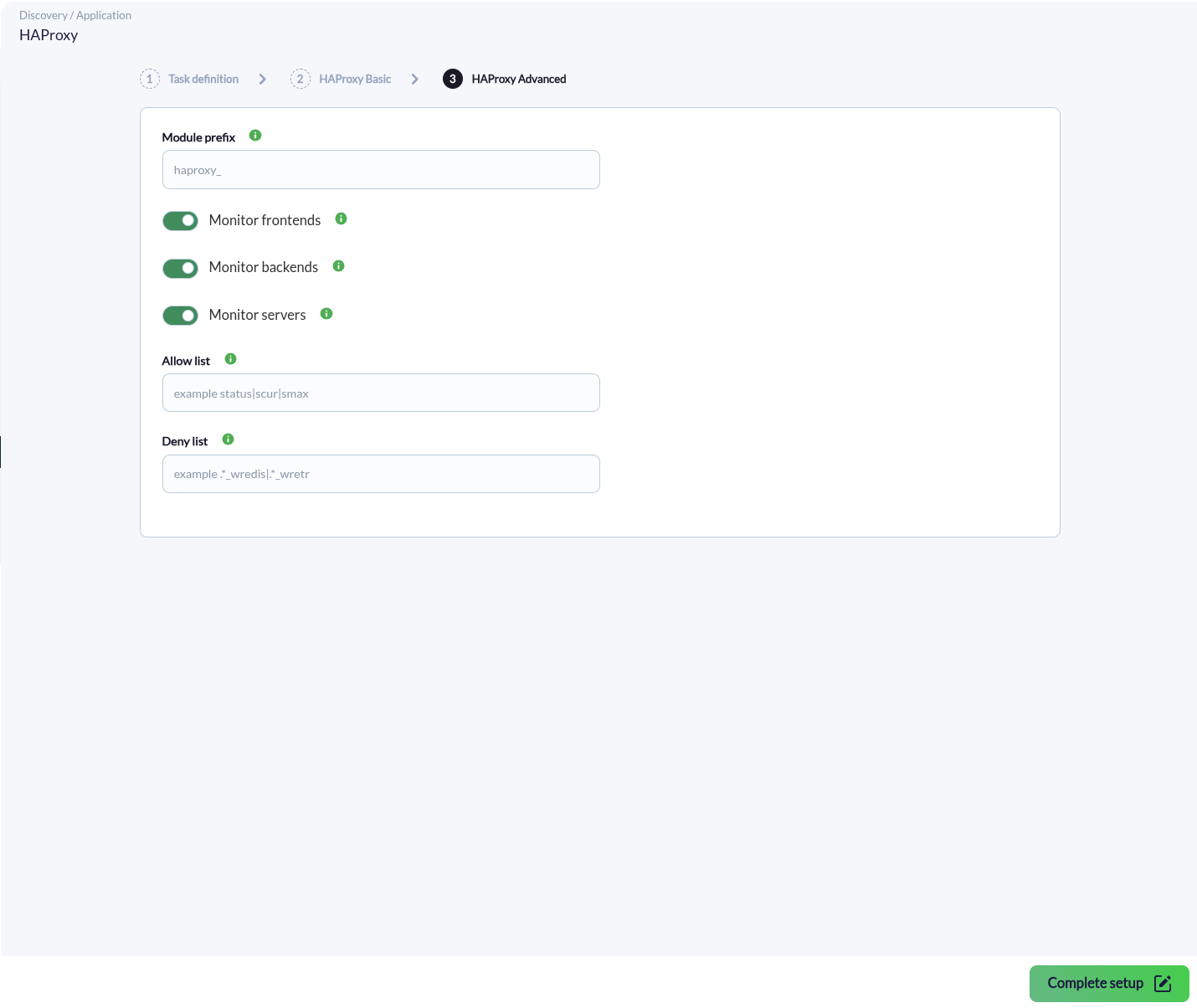

In the HAProxy Advanced step the following additional options can be configured:

  • Module prefix: prefix to be added to every created module name, optional
  • Monitor frontends: enables monitoring of frontend rows (type=0), optional
  • Monitor backends: enables monitoring of backend rows (type=1), optional
  • Monitor servers: enables monitoring of server rows (type=2), optional
  • Allow list: regular expression to include only modules whose name matches, optional
  • Deny list: regular expression to exclude modules whose name matches, optional

Successfully completed tasks will have an execution summary with the following information:

  • Total agents: Total number of agents generated by the task.
  • Total modules: Total number of modules generated by the task.
