Discovery

This plugin can be integrated with Pandora FMS Discovery.

To do so, you must load the “.disco” package that you can download from the Pandora FMS library:

Once loaded, Horizon environments can be monitored by creating Discovery tasks from the Management > Discovery > App section.

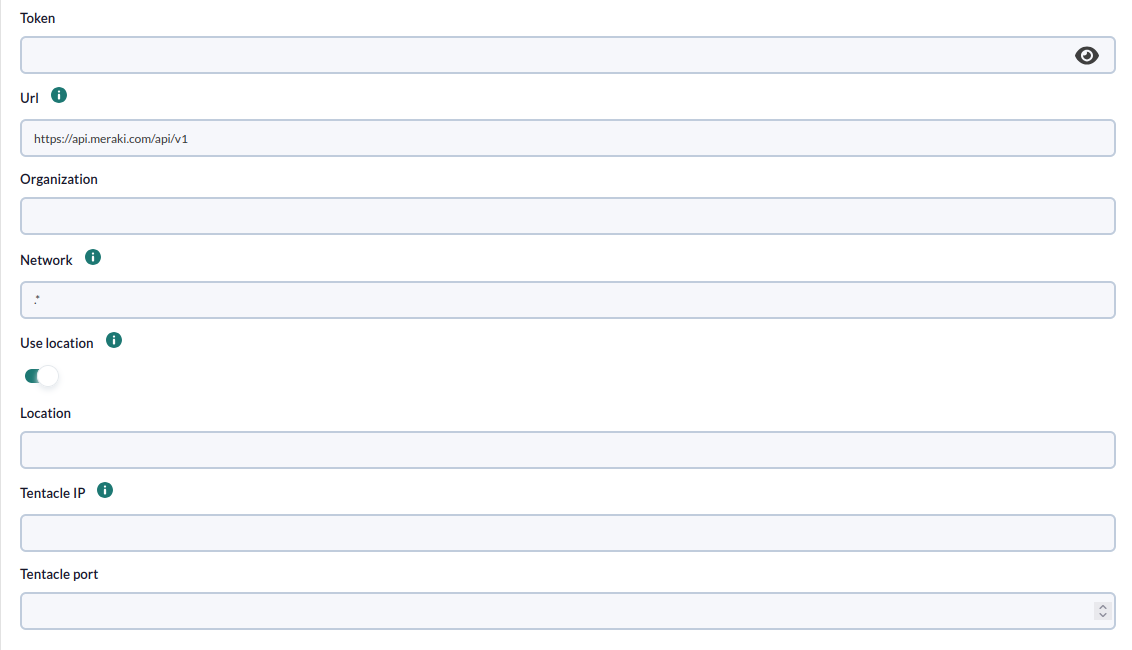

The following minimum data will be requested for each task:

Token: Token bearer required for authentication.
Url: API connection Url
Organization: ID of the organization in which the networks will be scanned.
Network: Meraki network or regexp pattern; all networks that match this will be monitored. Use `.*` to monitor all of them.
Location: Secondary groups added to the agent
Tentacle IP: Tentacle address
Tentacle port: Tentacle port

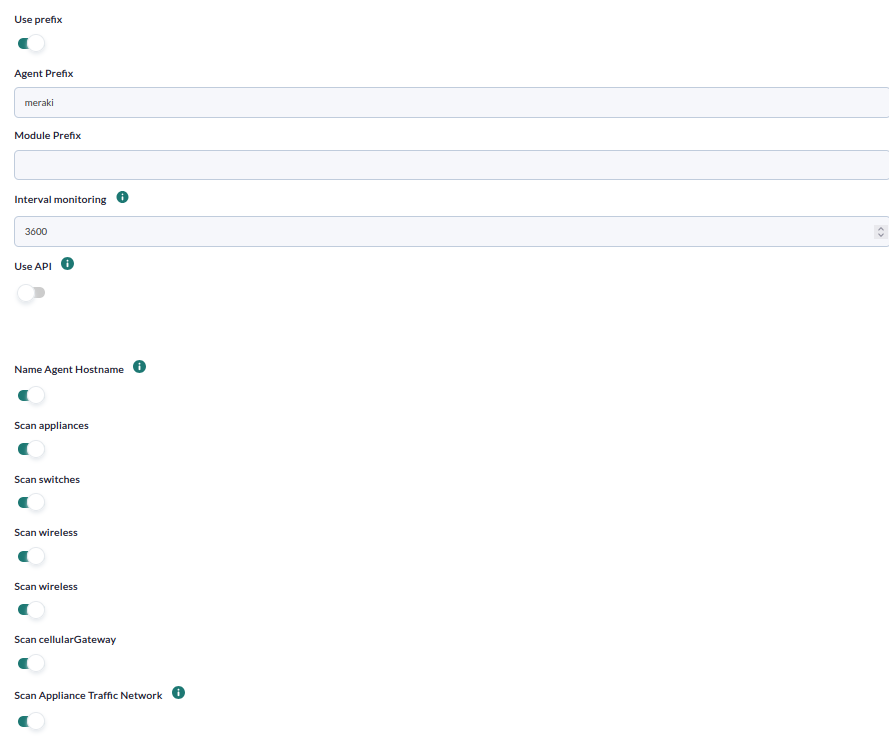

On the next page we will be asked for the following :

Agent prefix: Prefix for agents
Module prefix: Prefix for modules
Interval monitoring: Monitoring interval for switch port statistics.
API Url: Url of pandora api
API Password: Password of pandora api
API User: Pandora api user
API User password: Pandora api user password
Name Agent Hostname: Enabled will use the devices hostname as the agent name. Without activating the serial code.
Scan Appliances: Enable to monitor Appliance type devices
Scan Switches: Enable to monitor switch type devices
Scan Wireless: Enable to monitor wireless type devices.
Scan Appliance Traffic Network: Enabled will use the devices hostname as the agent name. Without activating the serial code.
Scan cellularGateway:Enable to monitor cellularGateway type devices.

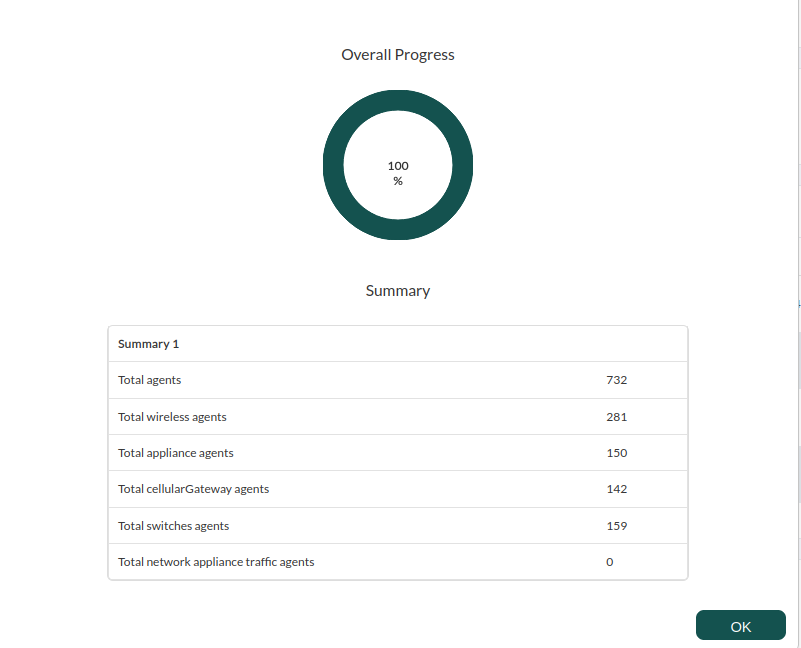

The successfully completed tasks will have an execution summary with the following information:
