Openweathermap

• Introduction
• Compatibility matrix
• Pre requisites
• Parameters
• Manual execution
• Configuration in PandoraFMS
• Modules generated by the plugin

Introduction

Ver. 22-08-2022

Plugin to collect weather data and display them in PandoraFMS.

Type: Server plug-in

Compatibility matrix

Systems where tested	Fedora
Systems where it should work	Cualquier sistema linux

Pre requisites

• Pandora FMS Data Server enabled
• Pandora FMS Plugin Server enabled

Parameters

Parámeter	Description
--lat	Geographic coordinate (latitude).
--lon	Geographic coordinate (longitude).
--key	Your unique API key (you can always find it on your account page in the "api key" tab).
-g,--group	Pandora FMS target group (optional)
--data_dir	Pandora FMS data directory. By default it is /var/spool/pandora/data_in/ (optional)
--as_agent_plugin	It is optional, if you want the plugin to be an agent plugin and put the modules in the pandora agent, execute this with a 1 (optional)

Manual execution

With an execution with "as_agent_plugin" in 1 we will be able to see the xml by terminal.

❯ ./pandora_openweathermap --lat <latitud> --lon <longitud> --key <api key> --as_agent_plugin 1

Configuration in PandoraFMS

Manual installation

Go to servers > plugins:



Click on add:

We put in name and the description that you prefer.

We put as command the execution with the path of the plugin:



/path_pandora_openweathermap.py

Recuerda que la ruta recomendada para el uso de los plugins de servidor es: /usr/share/pandora_server/util/plugin/

And in plugin parameters we will introduce these followed by the macro "_field<N>_", the obligatory ones for the plugin to work are --lat, --lon and --key .

Once this is done, click on "create".

Once this is done, the only thing left to do is to call it so we will go to the view of some agent and create a plugin module:



We will give it a name and in the section "plugin" we will put the one we have just configured.

Once this is done, click on create.

If the module is shown with 1, it means that it is running correctly.



Modules generated by the plugin

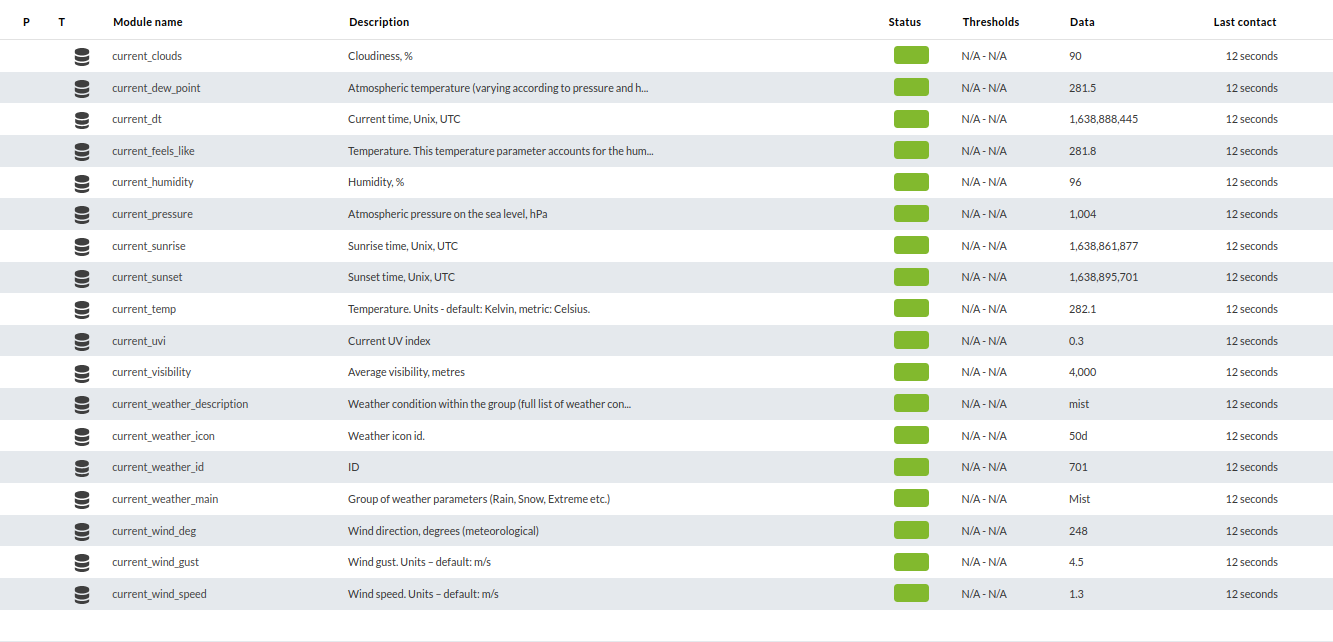

The plugin will create an agent with the following modules:

Current dt

Current sunrise

Current sunset

Current temp

Current feels like

Current pressure

Current humidity

Current dew point

Current wind speed

Current uvi

Current clouds

Current visibiity

Current wind deg

Current weather id

Current weather Main

Current weather description

Current weather icon



More info about these metrics in the openweathermap
